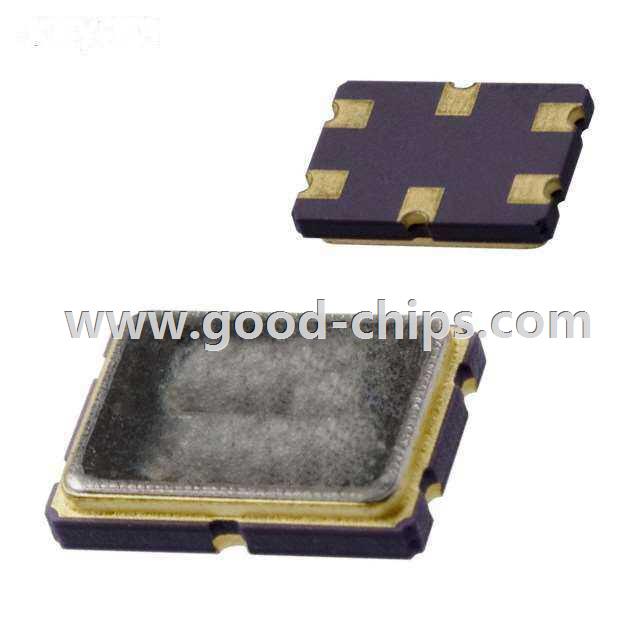

| Manufacturer Part Number: | ECS-96SMF45A30 |
|---|---|
| Manufacturer: | ECS Inc. |
| Product Category: | Monolithic Crystals |
| Available Quantity: | 10010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 45MHz Center 1.2 kOhm Monolithic Crystal Filter Surface Mount 2dB 30kHz |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ECS-96SMF45A30 Datasheet |
| Internal Part Number | 898-ECS-96SMF45A30 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Inductor Coupling Effects, Reduction and Orientation Schemes | |
| Online Catalog | ECS-96SMF Series | |
| Category | Filters | |
| Family | Monolithic Crystals | |
| Manufacturer | ECS Inc. | |
| Series | ECS-96SMF | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency - Center | 45MHz | |
| Impedance | 1.2 kOhm | |
| Insertion Loss | 2dB | |
| Bandwidth | 30kHz | |
| Ripple | 1dB | |
| Number of Poles | 2 | |
| Operating Temperature | -30°C ~ 80°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-SMD, No Lead (QFN, LCC) | |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | |
| Height (Max) | 0.059" (1.50mm) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ECS-96SMF45A30 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ECS-96SMF45A30 is in stock for immediate shipping now. We are the distributor of ECS Inc. all series components. The condition of ECS-96SMF45A30 is new and unused, you can buy ECS-96SMF45A30 ECS Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ECS-96SMF45A30.
