Manufacturer Part Number: | ECS-80-20-1 |
---|---|
Manufacturer: | ECS Inc. |
Product Category: | Crystals |
Available Quantity: | 9431 Pieces |
Unit Price: | Quote by Email |
Description: | 8MHz ±30ppm Crystal 20pF 35 Ohm -10°C ~ 70°C Through Hole HC49/U |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ECS-80-20-1 Datasheet |
Internal Part Number | 898-ECS-80-20-1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | HC-49U Series | |
Category | Crystals and Oscillators | |
Family | Crystals | |
Manufacturer | ECS Inc. | |
Series | HC-49U | |
Packaging | Bulk | |
Part Status | Active | |
Type | MHz Crystal | |
Frequency | 8MHz | |
Frequency Stability | ±50ppm | |
Frequency Tolerance | ±30ppm | |
Load Capacitance | 20pF | |
ESR (Equivalent Series Resistance) | 35 Ohm | |
Operating Mode | Fundamental | |
Operating Temperature | -10°C ~ 70°C | |
Ratings | - | |
Mounting Type | Through Hole | |

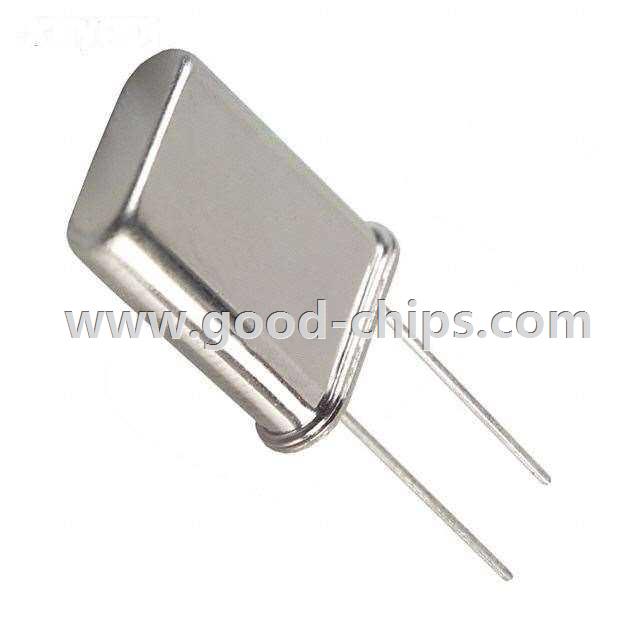

Package / Case | HC49/U | |
Size / Dimension | 0.447" L x 0.183" W (11.35mm x 4.65mm) | |
Height | 0.530" (13.46mm) | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ECS-80-20-1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ECS-80-20-1 is in stock for immediate shipping now. We are the distributor of ECS Inc. all series components. The condition of ECS-80-20-1 is new and unused, you can buy ECS-80-20-1 ECS Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ECS-80-20-1.
