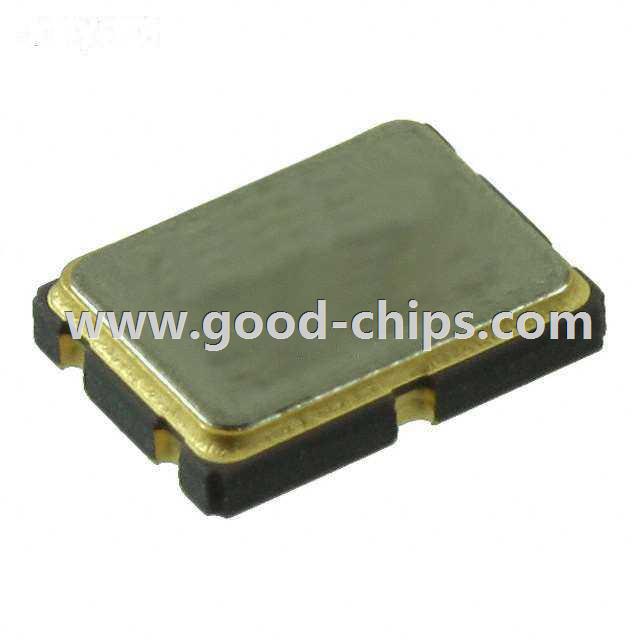

Manufacturer Part Number: | ECS-75SMF45A30B |
---|---|
Manufacturer: | ECS Inc. |
Product Category: | Monolithic Crystals |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 45MHz Center 1 kOhm Monolithic Crystal Filter Surface Mount 3dB 30kHz |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ECS-75SMF45A30B Datasheet |
Internal Part Number | 898-ECS-75SMF45A30B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Monolithic Crystal Filters | |
Online Catalog | ECS-75SMF Series | |
Category | Filters | |
Family | Monolithic Crystals | |
Manufacturer | ECS Inc. | |
Series | ECS-75SMF | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Frequency - Center | 45MHz | |
Impedance | 1 kOhm | |
Insertion Loss | 3dB | |
Bandwidth | 30kHz | |
Ripple | 1dB | |
Number of Poles | 4 | |
Operating Temperature | -30°C ~ 80°C | |
Mounting Type | Surface Mount | |
Package / Case | 6-SMD, No Lead (QFN, LCC) | |
Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | |
Height (Max) | 0.037" (0.95mm) | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ECS-75SMF45A30B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ECS-75SMF45A30B is in stock for immediate shipping now. We are the distributor of ECS Inc. all series components. The condition of ECS-75SMF45A30B is new and unused, you can buy ECS-75SMF45A30B ECS Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ECS-75SMF45A30B.
