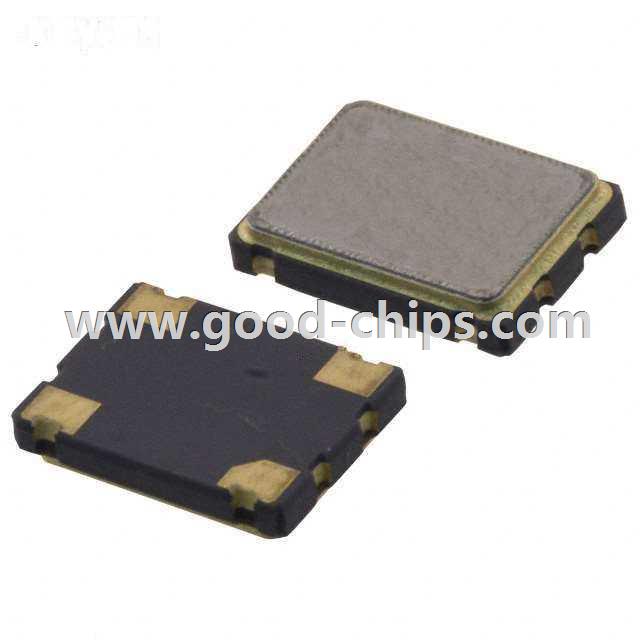

Manufacturer Part Number: | ECS-3953M-036-B-TR |
---|---|
Manufacturer: | ECS Inc. |
Product Category: | Oscillators |
Available Quantity: | 10010 Pieces |
Unit Price: | Quote by Email |
Description: | 3.6864MHz HCMOS XO (Standard) Oscillator Surface Mount 3.3V 15mA Enable/Disable |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ECS-3953M-036-B-TR Datasheet |
Internal Part Number | 898-ECS-3953M-036-B-TR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | ECS-3951M and ECS-3953M Series | |
Category | Crystals and Oscillators | |
Family | Oscillators | |
Manufacturer | ECS Inc. | |
Series | ECS-3953M | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | XO (Standard) | |
Frequency | 3.6864MHz | |
Function | Enable/Disable | |
Output | HCMOS | |
Voltage - Supply | 3.3V | |
Frequency Stability | ±50ppm | |
Operating Temperature | -10°C ~ 70°C | |
Current - Supply (Max) | 15mA | |
Ratings | - | |
Mounting Type | Surface Mount | |
Size / Dimension | 0.295" L x 0.197" W (7.50mm x 5.00mm) | |
Height | 0.069" (1.75mm) | |
Package / Case | 4-SMD, No Lead (DFN, LCC) | |
Current - Supply (Disable) (Max) | - | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ECS-3953M-036-B-TR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ECS-3953M-036-B-TR is in stock for immediate shipping now. We are the distributor of ECS Inc. all series components. The condition of ECS-3953M-036-B-TR is new and unused, you can buy ECS-3953M-036-B-TR ECS Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ECS-3953M-036-B-TR.
