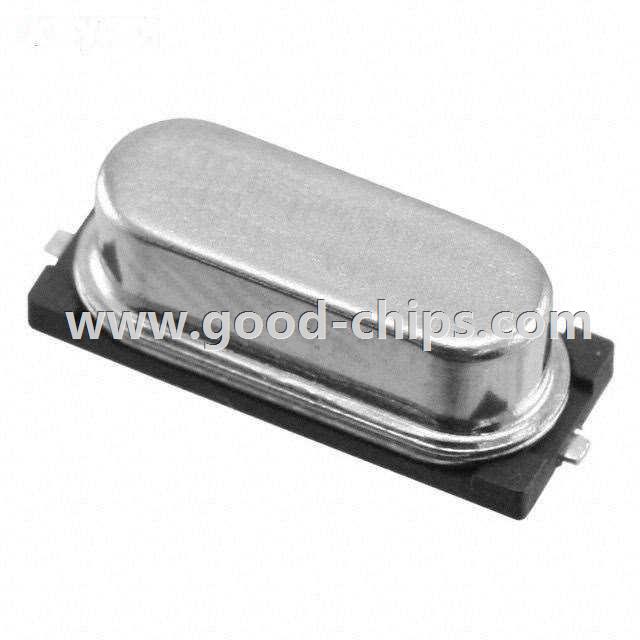

Manufacturer Part Number: | ECS-245.7-20-5PXDU-TR |
---|---|
Manufacturer: | ECS Inc. |
Product Category: | Crystals |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 24.576MHz ±30ppm Crystal 20pF 30 Ohm -55°C ~ 125°C Surface Mount HC49/US |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ECS-245.7-20-5PXDU-TR Datasheet |
Internal Part Number | 898-ECS-245.7-20-5PXDU-TR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | CSM-7 Series Crystals | |
Category | Crystals and Oscillators | |
Family | Crystals | |
Manufacturer | ECS Inc. | |
Series | CSM-7X-DU | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | MHz Crystal | |
Frequency | 24.576MHz | |
Frequency Stability | ±100ppm | |
Frequency Tolerance | ±30ppm | |
Load Capacitance | 20pF | |
ESR (Equivalent Series Resistance) | 30 Ohm | |
Operating Mode | Fundamental | |
Operating Temperature | -55°C ~ 125°C | |
Ratings | - | |
Mounting Type | Surface Mount | |
Package / Case | HC49/US | |
Size / Dimension | 0.449" L x 0.189" W (11.40mm x 4.80mm) | |
Height | 0.169" (4.30mm) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ECS-245.7-20-5PXDU-TR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ECS-245.7-20-5PXDU-TR is in stock for immediate shipping now. We are the distributor of ECS Inc. all series components. The condition of ECS-245.7-20-5PXDU-TR is new and unused, you can buy ECS-245.7-20-5PXDU-TR ECS Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ECS-245.7-20-5PXDU-TR.
