| Manufacturer Part Number: | ECS-2200BX-098 |
|---|---|
| Manufacturer: | ECS Inc. |
| Product Category: | Oscillators |
| Available Quantity: | 9622 Pieces |
| Unit Price: | Quote by Email |
| Description: | 9.8304MHz HCMOS, TTL XO (Standard) Oscillator Through Hole 5V 25mA Enable/Disable |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ECS-2200BX-098 Datasheet |
| Internal Part Number | 898-ECS-2200BX-098 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | ECS-2200X Series | |
| Category | Crystals and Oscillators | |
| Family | Oscillators | |
| Manufacturer | ECS Inc. | |
| Series | ECS-2200X | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | XO (Standard) | |
| Frequency | 9.8304MHz | |
| Function | Enable/Disable | |
| Output | HCMOS, TTL | |
| Voltage - Supply | 5V | |
| Frequency Stability | ±50ppm | |
| Operating Temperature | 0°C ~ 70°C | |
| Current - Supply (Max) | 25mA | |
| Ratings | - | |
| Mounting Type | Through Hole | |
| Size / Dimension | 0.520" L x 0.520" W (13.20mm x 13.20mm) | |
| Height | 0.213" (5.40mm) | |

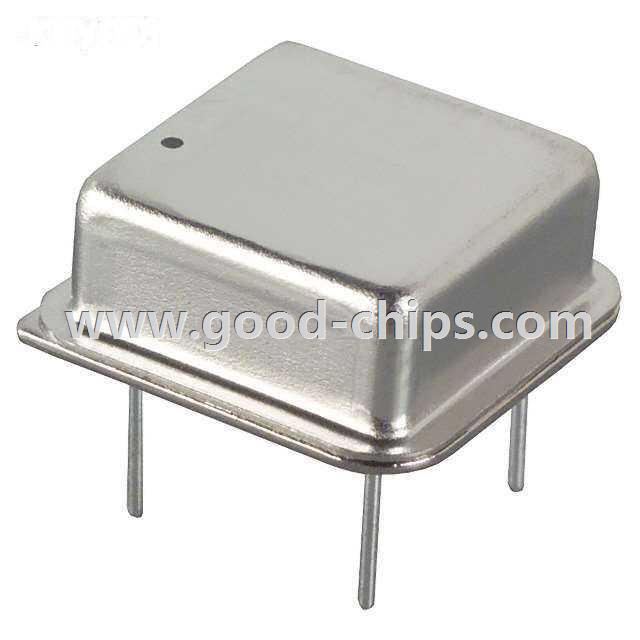

| Package / Case | 8-DIP, 4 Leads (Half Size, Metal Can) | |
| Current - Supply (Disable) (Max) | - | |
| Standard Package | 40 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ECS-2200BX-098 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ECS-2200BX-098 is in stock for immediate shipping now. We are the distributor of ECS Inc. all series components. The condition of ECS-2200BX-098 is new and unused, you can buy ECS-2200BX-098 ECS Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ECS-2200BX-098.
