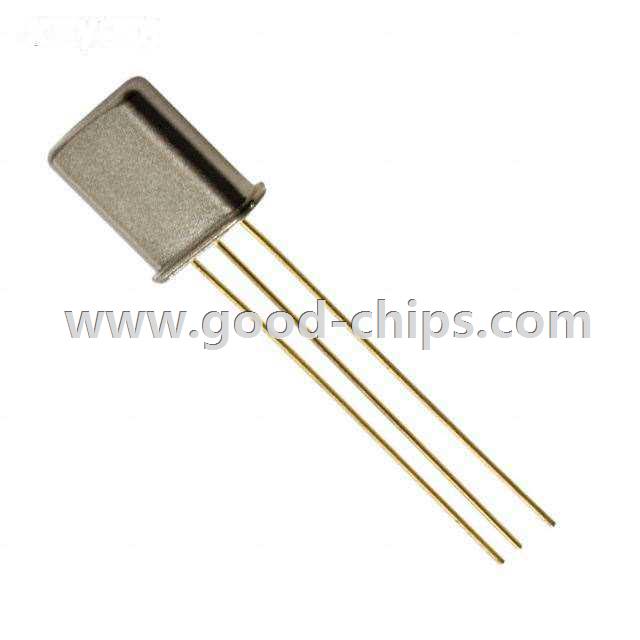

Manufacturer Part Number: | ECS-21K-7.5A |
---|---|
Manufacturer: | ECS Inc. |
Product Category: | Monolithic Crystals |
Available Quantity: | 9096 Pieces |
Unit Price: | Quote by Email |
Description: | 21.4MHz Center 1.5 kOhm Monolithic Crystal Filter Through Hole 2dB 7.5kHz |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ECS-21K-7.5A Datasheet |
Internal Part Number | 898-ECS-21K-7.5A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Monolithic Crystal Filters | |
Online Catalog | Crystal Filters | |
Category | Filters | |
Family | Monolithic Crystals | |
Manufacturer | ECS Inc. | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Frequency - Center | 21.4MHz | |
Impedance | 1.5 kOhm | |
Insertion Loss | 2dB | |
Bandwidth | 7.5kHz | |
Ripple | 0.5dB | |
Number of Poles | 2 | |
Operating Temperature | -20°C ~ 70°C | |
Mounting Type | Through Hole | |
Package / Case | HC49/U | |
Size / Dimension | 0.437" L x 0.185" W (11.10mm x 4.70mm) | |
Height (Max) | 0.441" (11.20mm) | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ECS-21K-7.5A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ECS-21K-7.5A is in stock for immediate shipping now. We are the distributor of ECS Inc. all series components. The condition of ECS-21K-7.5A is new and unused, you can buy ECS-21K-7.5A ECS Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ECS-21K-7.5A.
