Manufacturer Part Number: | ECS-196.6-18-33Q-DS |
---|---|
Manufacturer: | ECS Inc. |
Product Category: | Crystals |
Available Quantity: | 10010 Pieces |
Unit Price: | Quote by Email |
Description: | 19.6608MHz ±30ppm Crystal 18pF 80 Ohm -40°C ~ 125°C AEC-Q200 Surface Mount 4-SMD, No Lead (DFN, LCC) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ECS-196.6-18-33Q-DS Datasheet |
Internal Part Number | 898-ECS-196.6-18-33Q-DS | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | AEC-Q200 Qualified Crystals | |

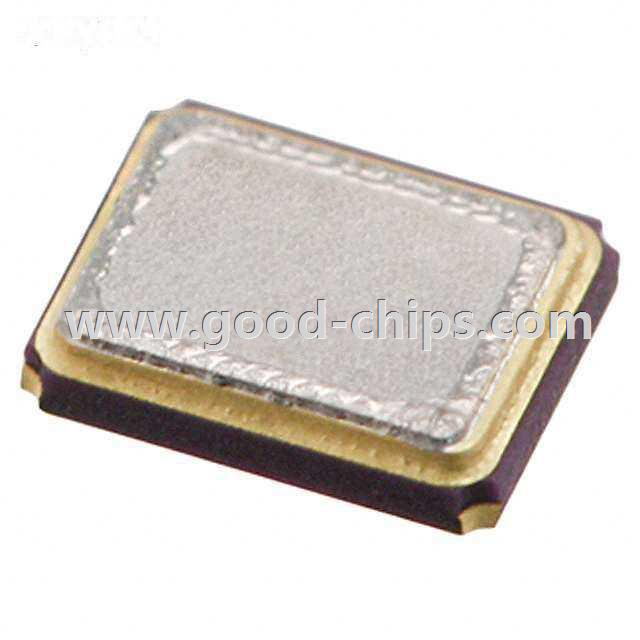

Online Catalog | ECX-33Q Series | |
Category | Crystals and Oscillators | |
Family | Crystals | |
Manufacturer | ECS Inc. | |
Series | ECX-33Q | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | MHz Crystal | |
Frequency | 19.6608MHz | |
Frequency Stability | ±100ppm | |
Frequency Tolerance | ±30ppm | |
Load Capacitance | 18pF | |
ESR (Equivalent Series Resistance) | 80 Ohm | |
Operating Mode | Fundamental | |
Operating Temperature | -40°C ~ 125°C | |
Ratings | AEC-Q200 | |
Mounting Type | Surface Mount | |
Package / Case | 4-SMD, No Lead (DFN, LCC) | |
Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | |
Height | 0.031" (0.80mm) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ECS-196.6-18-33Q-DS | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ECS-196.6-18-33Q-DS is in stock for immediate shipping now. We are the distributor of ECS Inc. all series components. The condition of ECS-196.6-18-33Q-DS is new and unused, you can buy ECS-196.6-18-33Q-DS ECS Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ECS-196.6-18-33Q-DS.
