Manufacturer Part Number: | ECMF06-6HSM16 |
---|---|
Manufacturer: | STMicroelectronics |
Product Category: | Common Mode Chokes |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 6 Line Common Mode Choke Surface Mount 100mA DCR 5 Ohm (Typ) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ECMF06-6HSM16 Datasheet |
Internal Part Number | 898-ECMF06-6HSM16 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | ECMF Series | |
Category | Filters | |
Family | Common Mode Chokes | |
Manufacturer | STMicroelectronics | |
Series | ECMF | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Filter Type | Signal Line | |
Number of Lines | 6 | |
Impedance @ Frequency | - | |
Inductance @ Frequency | - | |
Current Rating (Max) | 100mA | |
DC Resistance (DCR) (Max) | 5 Ohm (Typ) | |
Voltage Rating - DC | - | |
Voltage Rating - AC | - | |
Operating Temperature | -40°C ~ 85°C | |
Ratings | - | |
Approvals | - | |
Features | ESD | |
Mounting Type | Surface Mount | |
Size / Dimension | 0.161" L x 0.053" W (4.10mm x 1.35mm) | |
Height (Max) | 0.022" (0.55mm) | |

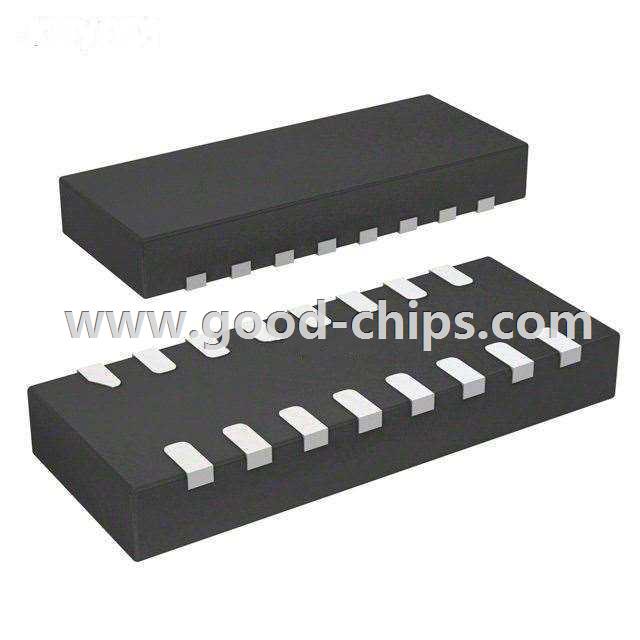

Package / Case | 16-UFDFN | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ECMF06-6HSM16 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ECMF06-6HSM16 is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of ECMF06-6HSM16 is new and unused, you can buy ECMF06-6HSM16 STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ECMF06-6HSM16.
