| Manufacturer Part Number: | ECLAMP2384K.TCT |
|---|---|
| Manufacturer: | Semtech Corporation |
| Product Category: | EMI/RFI Filters (LC, RC Networks) |
| Available Quantity: | 11910 Pieces |
| Unit Price: | Quote by Email |
| Description: | RC (Pi) EMI Filter 2nd Order Low Pass 4 Channel R = 200 Ohms, C = 12pF 8-UFDFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ECLAMP2384K.TCT Datasheet |
| Internal Part Number | 898-ECLAMP2384K.TCT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | EMIClamp® Series | |
| Category | Filters | |
| Family | EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | Semtech Corporation | |
| Series | EMIClamp® | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Type | Low Pass | |
| Filter Order | 2nd | |
| Technology | RC (Pi) | |
| Number of Channels | 4 | |
| Center / Cutoff Frequency | - | |
| Attenuation Value | 30dB @ 800MHz ~ 2.7GHz | |
| Resistance - Channel (Ohms) | 200 | |
| Current | - | |
| Values | R = 200 Ohms, C = 12pF | |
| ESD Protection | Yes | |
| Operating Temperature | -40°C ~ 85°C | |
| Applications | Data Lines for Mobile Devices | |
| Voltage - Rated | - | |
| Mounting Type | Surface Mount | |

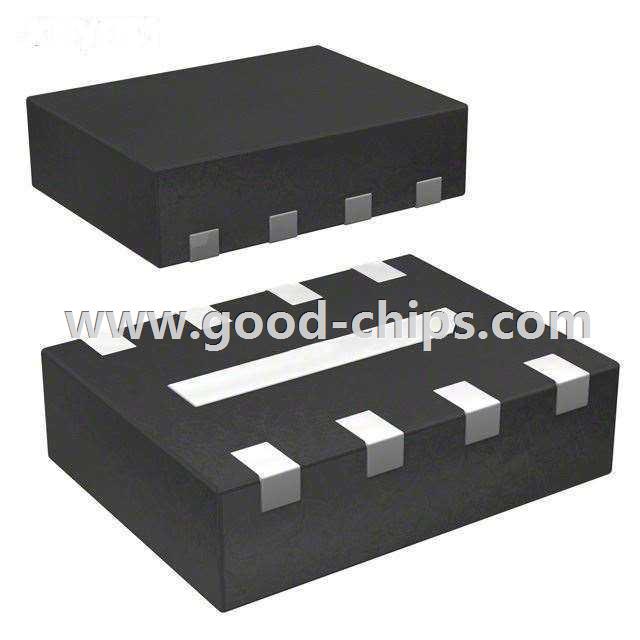

| Package / Case | 8-UFDFN Exposed Pad | |
| Size / Dimension | 0.067" L x 0.051" W (1.70mm x 1.30mm) | |
| Height | 0.022" (0.55mm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ECLAMP2384K.TCT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ECLAMP2384K.TCT is in stock for immediate shipping now. We are the distributor of Semtech Corporation all series components. The condition of ECLAMP2384K.TCT is new and unused, you can buy ECLAMP2384K.TCT Semtech Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ECLAMP2384K.TCT.
