| Manufacturer Part Number: | ECLAMP0501T.TCT |
|---|---|
| Manufacturer: | Semtech Corporation |
| Product Category: | EMI/RFI Filters (LC, RC Networks) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RC EMI Filter 1st Order High Pass 1 Channel R = 1 kOhm, C = 12pF 2A 3-XFDFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ECLAMP0501T.TCT Datasheet |
| Internal Part Number | 898-ECLAMP0501T.TCT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Filters | |
| Family | EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | Semtech Corporation | |
| Series | EMIClamp® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | High Pass | |
| Filter Order | 1st | |
| Technology | RC | |
| Number of Channels | 1 | |
| Center / Cutoff Frequency | - | |
| Attenuation Value | - | |
| Resistance - Channel (Ohms) | 1k | |
| Current | 2A | |
| Values | R = 1 kOhm, C = 12pF | |
| ESD Protection | Yes | |
| Operating Temperature | -40°C ~ 85°C | |
| Applications | Data Lines for Mobile Devices | |
| Voltage - Rated | - | |
| Mounting Type | Surface Mount | |

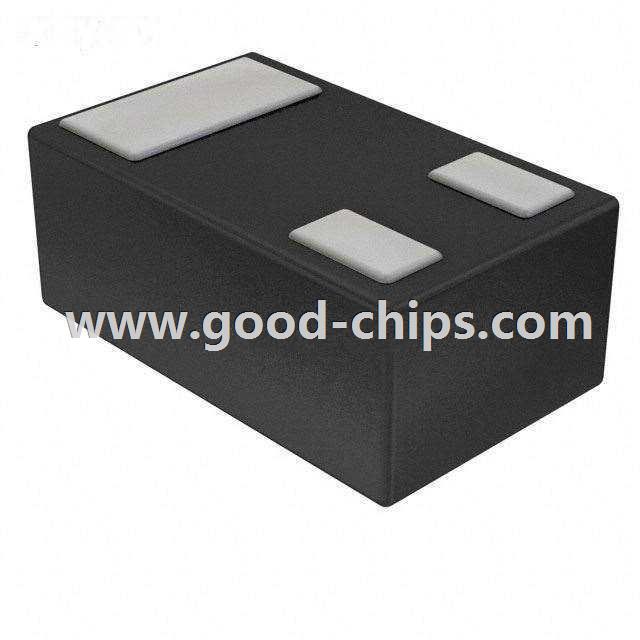

| Package / Case | 3-XFDFN | |
| Size / Dimension | 0.039" L x 0.024" W (1.00mm x 0.60mm) | |
| Height | 0.017" (0.43mm) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ECLAMP0501T.TCT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ECLAMP0501T.TCT is in stock for immediate shipping now. We are the distributor of Semtech Corporation all series components. The condition of ECLAMP0501T.TCT is new and unused, you can buy ECLAMP0501T.TCT Semtech Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ECLAMP0501T.TCT.
