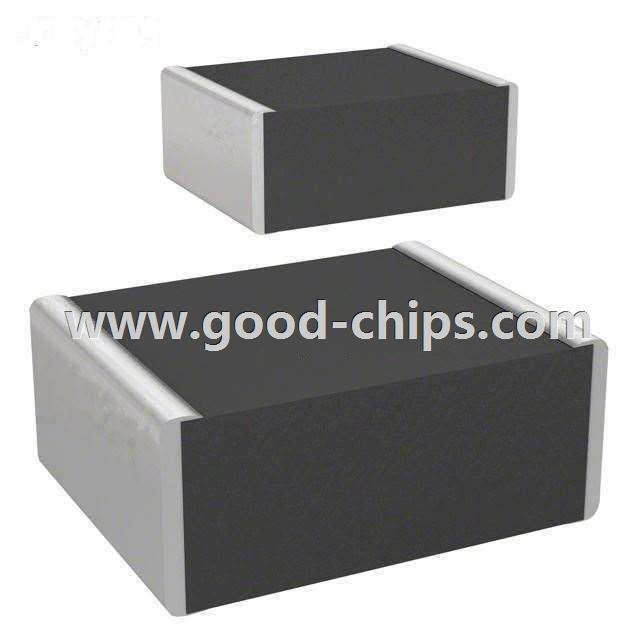

| Manufacturer Part Number: | ECH-U1H123JX5 |
|---|---|
| Manufacturer: | Panasonic Electronic Components |
| Product Category: | Film Capacitors |
| Available Quantity: | 11010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 0.012µF Film Capacitor 50V Polyphenylene Sulfide (PPS), Metallized - Stacked 1210 (3225 Metric) 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ECH-U1H123JX5 Datasheet |
| Internal Part Number | 898-ECH-U1H123JX5 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | ECH-U(X) Series | |
| Category | Capacitors | |
| Family | Film Capacitors | |
| Manufacturer | Panasonic Electronic Components | |
| Series | ECH-U(X) | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Capacitance | 0.012µF | |
| Tolerance | ±5% | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 50V | |
| Dielectric Material | Polyphenylene Sulfide (PPS), Metallized - Stacked | |
| ESR (Equivalent Series Resistance) | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 1210 (3225 Metric) | |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | |
| Height - Seated (Max) | 0.051" (1.30mm) | |
| Termination | Solder Pads | |
| Lead Spacing | - | |
| Applications | General Purpose | |
| Features | Derating Recommended | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ECH-U1H123JX5 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ECH-U1H123JX5 is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of ECH-U1H123JX5 is new and unused, you can buy ECH-U1H123JX5 Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ECH-U1H123JX5.
