Manufacturer Part Number: | EC4H08C-TL-H |
---|---|
Manufacturer: | ON Semiconductor |
Product Category: | Transistors - Bipolar (BJT) - RF |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RF Transistor NPN 3.5V 15mA 24GHz 50mW Surface Mount 4-ECSP1008 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | EC4H08C-TL-H Datasheet |
Internal Part Number | 898-EC4H08C-TL-H | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Discrete Semiconductor Products | |
Family | Transistors - Bipolar (BJT) - RF | |
Manufacturer | ON Semiconductor | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Transistor Type | NPN | |
Voltage - Collector Emitter Breakdown (Max) | 3.5V | |
Frequency - Transition | 24GHz | |
Noise Figure (dB Typ @ f) | 1.5dB @ 2GHz | |
Gain | 17dB | |
Power - Max | 50mW | |
DC Current Gain (hFE) (Min) @ Ic, Vce | 70 @ 5mA, 1V | |
Current - Collector (Ic) (Max) | 15mA | |
Mounting Type | Surface Mount | |

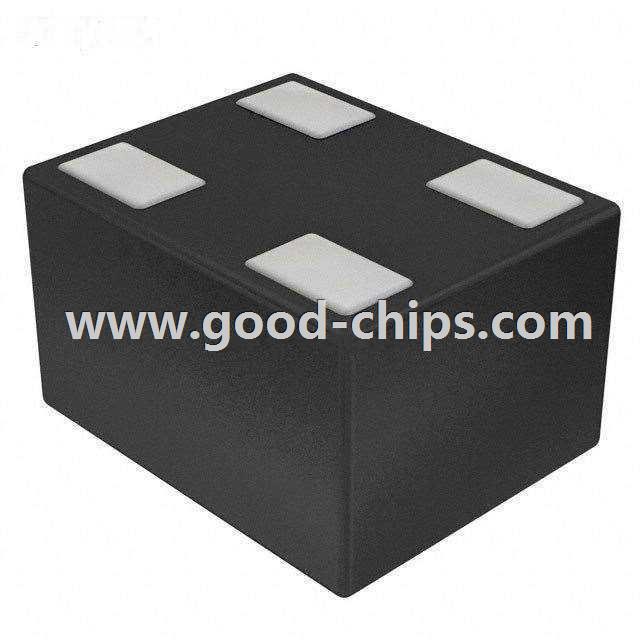

Package / Case | 4-UFDFN | |
Supplier Device Package | 4-ECSP1008 | |
Standard Package | 10,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | EC4H08C-TL-H | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
EC4H08C-TL-H is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of EC4H08C-TL-H is new and unused, you can buy EC4H08C-TL-H ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EC4H08C-TL-H.
