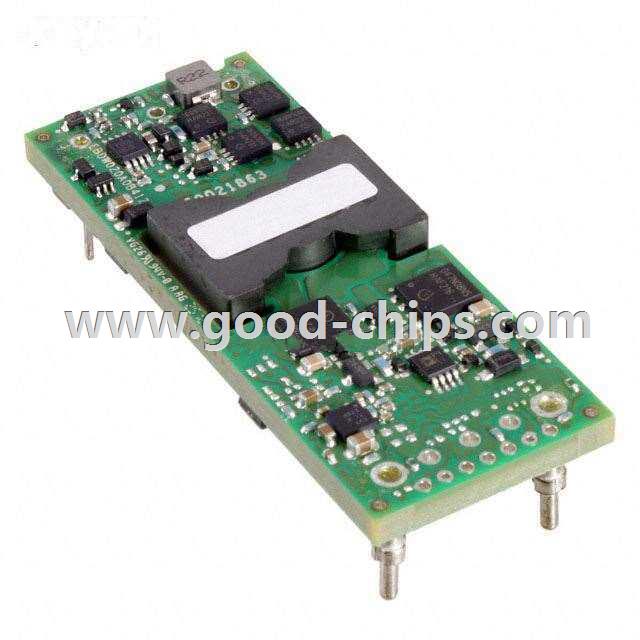

| Manufacturer Part Number: | EBVW020A0B1Z |
|---|---|
| Manufacturer: | GE Critical Power |
| Product Category: | DC DC Converters |
| Available Quantity: | 9042 Pieces |
| Unit Price: | Quote by Email |
| Description: | DC/DC CONVERT 12V 20A 1/8TH BRK |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2A (4 Weeks) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EBVW020A0B1Z Datasheet |
| Internal Part Number | 898-EBVW020A0B1Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Barracuda DC-DC Power Conversion Modules | |
| Manufacturer Product Page | Power Module Wizard™ | |
| Online Catalog | Barracuda™, EBVW020A0B Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | GE Critical Power | |
| Series | Barracuda™ EBVW020A0B | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Intermediate Bus Converter | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 36V | |
| Voltage - Input (Max) | 75V | |
| Voltage - Output 1 | 12V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 20A | |
| Power (Watts) - Manufacture Series | 240W | |
| Voltage - Isolation | 2.25kV (2250V) | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP Module, 1/8 Brick | |
| Size / Dimension | 2.30" L x 0.90" W x 0.44" H (58.4mm x 22.8mm x 11.1mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 95.2% | |
| Power (Watts) - Max | 240W | |
| Standard Package | 36 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EBVW020A0B1Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EBVW020A0B1Z is in stock for immediate shipping now. We are the distributor of GE Critical Power all series components. The condition of EBVW020A0B1Z is new and unused, you can buy EBVW020A0B1Z GE Critical Power with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EBVW020A0B1Z.
