| Manufacturer Part Number: | EA-XPR-120 |
|---|---|
| Manufacturer: | Embedded Artists |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LPCXpresso LPC1114, LPC1343, LPC176x LPCXpresso Series Power Management, Motor Control Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EA-XPR-120 Datasheet |
| Internal Part Number | 898-EA-XPR-120 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Embedded Artists | |
| Series | LPCXpresso | |
| Part Status | Obsolete | |
| Main Purpose | Power Management, Motor Control | |
| Embedded | Yes, MCU, 32-Bit | |
| Utilized IC / Part | LPCXpresso LPC1114, LPC1343, LPC176x | |
| Primary Attributes | 12 ~ 30V Input, 300W Max Output | |
| Secondary Attributes | Expansion Connector for LPC1800/LPC4000/LPC2900 Families | |

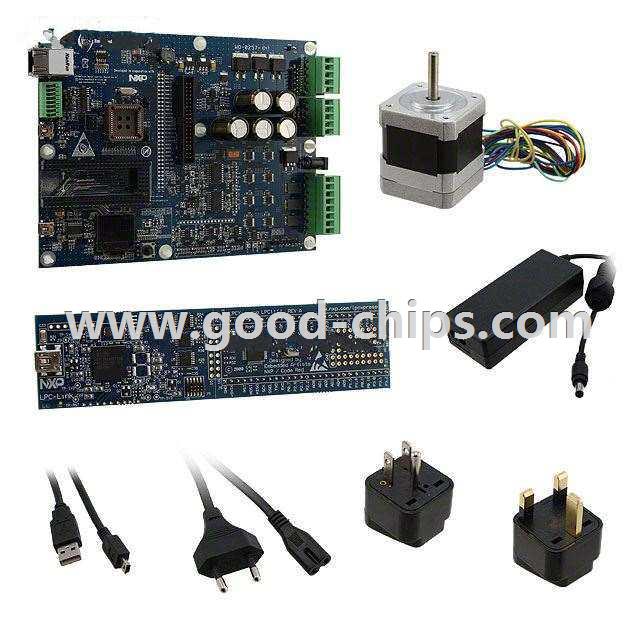

| Supplied Contents | Motor Control Board, Daughter Board, Motor, Power Supply | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EA-XPR-120 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EA-XPR-120 is in stock for immediate shipping now. We are the distributor of Embedded Artists all series components. The condition of EA-XPR-120 is new and unused, you can buy EA-XPR-120 Embedded Artists with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EA-XPR-120.
