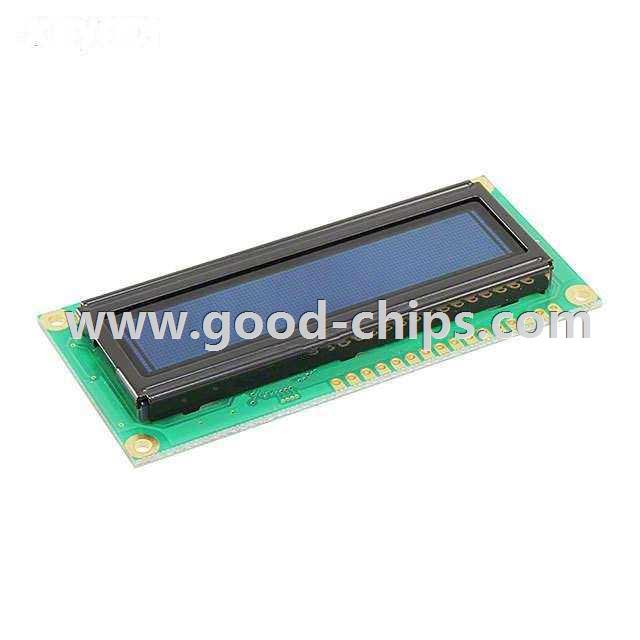

Manufacturer Part Number: | EA W162-X3LW |
---|---|
Manufacturer: | Electronic Assembly GmbH |
Product Category: | Display Modules - LCD, OLED Character and Numeric |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Character LCD Display Module Passive 5 x 8 Dots OLED Without Backlight Parallel, 8-Bit 80.00mm x 36.00mm x 4.80mm |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | EA W162-X3LW Datasheet |
Internal Part Number | 898-EA W162-X3LW | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | OLED Displays | |
Category | Optoelectronics | |
Family | Display Modules - LCD, OLED Character and Numeric | |
Manufacturer | Electronic Assembly GmbH | |
Series | - | |
Part Status | Active | |
Number of Characters | 32 | |
Display Format | 16 x 2 | |
Character Format | 5 x 8 Dots | |
Display Type | OLED | |
Display Mode | Passive | |
Character Size | 5.55mm H x 2.95mm W | |
Outline L x W x H | 80.00mm x 36.00mm x 4.80mm | |
Viewing Area | 66.00mm L x 25.20mm W | |
Backlight | Without Backlight | |
Voltage - Supply | 3.3 V ~ 5 V | |
Dot Size | 0.55mm W x 0.65mm H | |
Interface | Parallel, 8-Bit | |
Operating Temperature | -40°C ~ 80°C | |
Text Color | White | |
Background Color | Black | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | EA W162-X3LW | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
EA W162-X3LW is in stock for immediate shipping now. We are the distributor of Electronic Assembly GmbH all series components. The condition of EA W162-X3LW is new and unused, you can buy EA W162-X3LW Electronic Assembly GmbH with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EA W162-X3LW.
