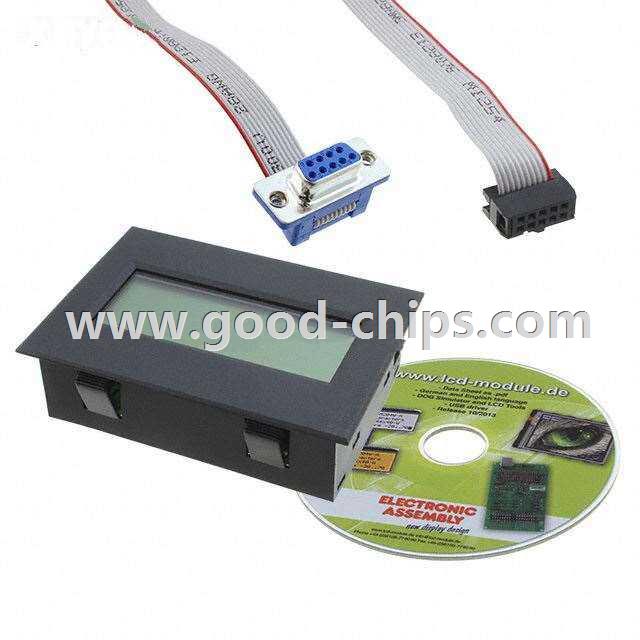

Manufacturer Part Number: | EA SER081-92NLED |
---|---|
Manufacturer: | Electronic Assembly GmbH |
Product Category: | Display Modules - LCD, OLED Character and Numeric |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Character LCD Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green RS-232 77.00mm x 54.00mm x 26.20mm |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | EA SER081-92NLED Datasheet |
Internal Part Number | 898-EA SER081-92NLED | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | EA SER Displays | |
Category | Optoelectronics | |
Family | Display Modules - LCD, OLED Character and Numeric | |
Manufacturer | Electronic Assembly GmbH | |
Series | - | |
Part Status | Active | |
Number of Characters | 8 | |
Display Format | 8 x 1 | |
Character Format | 5 x 8 Dots | |
Display Type | STN - Super-Twisted Nematic | |
Display Mode | Transflective | |
Character Size | 11.48mm H x 5.96mm W | |
Outline L x W x H | 77.00mm x 54.00mm x 26.20mm | |
Viewing Area | 56.50mm L x 22.00mm W | |
Backlight | LED - Yellow/Green | |
Voltage - Supply | 5V | |
Dot Size | 1.16mm W x 1.40mm H | |
Interface | RS-232 | |
Operating Temperature | - | |
Text Color | Gray | |
Background Color | Green | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | EA SER081-92NLED | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
EA SER081-92NLED is in stock for immediate shipping now. We are the distributor of Electronic Assembly GmbH all series components. The condition of EA SER081-92NLED is new and unused, you can buy EA SER081-92NLED Electronic Assembly GmbH with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EA SER081-92NLED.
