| Manufacturer Part Number: | EA EVALEDIP128B |
|---|---|
| Manufacturer: | Electronic Assembly GmbH |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |

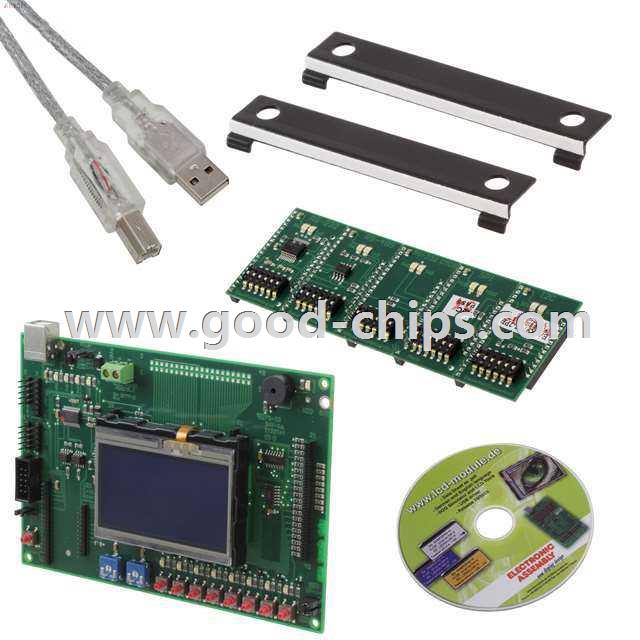

| Description: | EA eDIP128B eDIP Series Displays, LCD Display Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EA EVALEDIP128B Datasheet |
| Internal Part Number | 898-EA EVALEDIP128B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Online Catalog | eDIP-Series Evaluation Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Electronic Assembly GmbH | |
| Series | eDIP | |
| Part Status | Active | |
| Main Purpose | Displays, LCD Display | |
| Embedded | - | |
| Utilized IC / Part | EA eDIP128B | |
| Primary Attributes | 2.8" 128x64 | |
| Secondary Attributes | LED Status Indicators | |
| Supplied Contents | 3 Boards, Cable | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EA EVALEDIP128B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EA EVALEDIP128B is in stock for immediate shipping now. We are the distributor of Electronic Assembly GmbH all series components. The condition of EA EVALEDIP128B is new and unused, you can buy EA EVALEDIP128B Electronic Assembly GmbH with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EA EVALEDIP128B.
