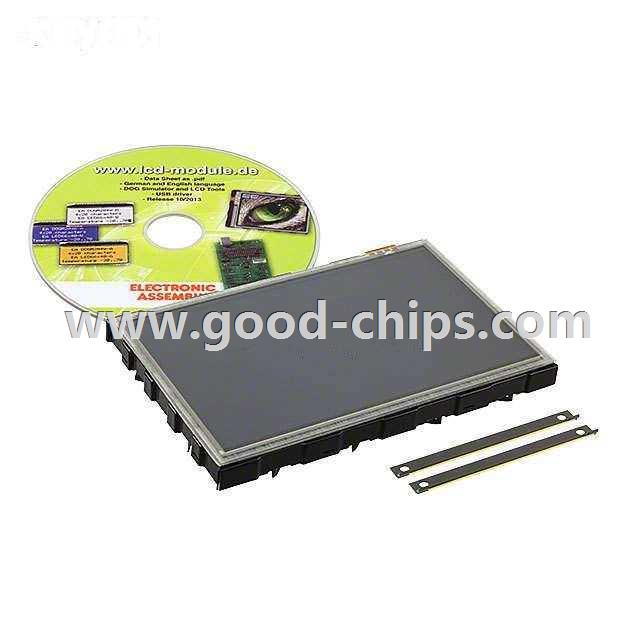

| Manufacturer Part Number: | EA EDIPTFT70-ATP |
|---|---|
| Manufacturer: | Electronic Assembly GmbH |
| Product Category: | Display Modules - LCD, OLED, Graphic |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |
| Description: | Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color I²C, RS-232, SPI 7" (177.80mm) 800 x 480 (WVGA) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EA EDIPTFT70-ATP Datasheet |
| Internal Part Number | 898-EA EDIPTFT70-ATP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Firmware Update 13/Jul/2015 | |
| Online Catalog | EA EDIP TFT Display Series | |
| Category | Optoelectronics | |
| Family | Display Modules - LCD, OLED, Graphic | |
| Manufacturer | Electronic Assembly GmbH | |
| Series | EA eDIP | |
| Part Status | Active | |
| Display Type | TFT - Color | |
| Display Mode | Transmissive | |
| Touchscreen | Resistive | |
| Diagonal Screen Size | 7" (177.80mm) | |
| Viewing Area | 155.00mm W x 94.00mm H | |
| Backlight | LED - White | |
| Dot Pixels | 800 x 480 (WVGA) | |
| Interface | I²C, RS-232, SPI | |
| Graphics Color | Red, Green, Blue (RGB) | |
| Background Color | - | |
| Dot Size | - | |
| Dot Pitch | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EA EDIPTFT70-ATP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EA EDIPTFT70-ATP is in stock for immediate shipping now. We are the distributor of Electronic Assembly GmbH all series components. The condition of EA EDIPTFT70-ATP is new and unused, you can buy EA EDIPTFT70-ATP Electronic Assembly GmbH with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EA EDIPTFT70-ATP.
