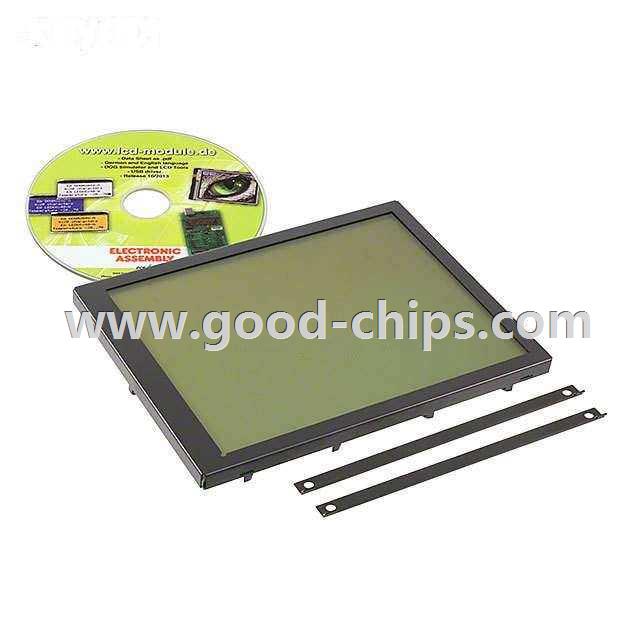

| Manufacturer Part Number: | EA EDIP320J-8LW |
|---|---|
| Manufacturer: | Electronic Assembly GmbH |
| Product Category: | Display Modules - LCD, OLED, Graphic |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |
| Description: | Graphic LCD Display Module Transflective Black FSTN - Film Super-Twisted Nematic I²C, RS-232, SPI 5.7" (144.78mm) 320 x 240 (QVGA) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EA EDIP320J-8LW Datasheet |
| Internal Part Number | 898-EA EDIP320J-8LW | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | EA EDIP Series | |
| Category | Optoelectronics | |
| Family | Display Modules - LCD, OLED, Graphic | |
| Manufacturer | Electronic Assembly GmbH | |
| Series | EA eDIP | |
| Part Status | Active | |
| Display Type | FSTN - Film Super-Twisted Nematic | |
| Display Mode | Transflective | |
| Touchscreen | - | |
| Diagonal Screen Size | 5.7" (144.78mm) | |
| Viewing Area | 121.00mm W x 92.60mm H | |
| Backlight | LED - White | |
| Dot Pixels | 320 x 240 (QVGA) | |
| Interface | I²C, RS-232, SPI | |
| Graphics Color | Black | |
| Background Color | White | |
| Dot Size | 0.34mm W x 0.34mm H | |
| Dot Pitch | 0.36mm W x 0.36mm H | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EA EDIP320J-8LW | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EA EDIP320J-8LW is in stock for immediate shipping now. We are the distributor of Electronic Assembly GmbH all series components. The condition of EA EDIP320J-8LW is new and unused, you can buy EA EDIP320J-8LW Electronic Assembly GmbH with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EA EDIP320J-8LW.
