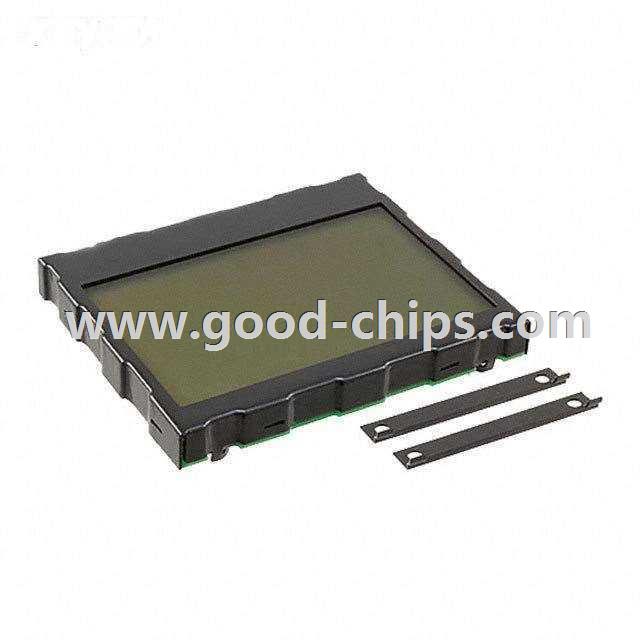

Manufacturer Part Number: | EA EDIP160W-7LW |
---|---|
Manufacturer: | Electronic Assembly GmbH |
Product Category: | Display Modules - LCD, OLED, Graphic |
Available Quantity: | 9019 Pieces |
Unit Price: | Quote by Email |
Description: | Graphic LCD Display Module Transflective Black FSTN - Film Super-Twisted Nematic I²C, RS-232, SPI 160 x 104 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | EA EDIP160W-7LW Datasheet |
Internal Part Number | 898-EA EDIP160W-7LW | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | EA EDIP Series | |
Category | Optoelectronics | |
Family | Display Modules - LCD, OLED, Graphic | |
Manufacturer | Electronic Assembly GmbH | |
Series | EA eDIP | |
Part Status | Active | |
Display Type | FSTN - Film Super-Twisted Nematic | |
Display Mode | Transflective | |
Touchscreen | - | |
Diagonal Screen Size | - | |
Viewing Area | 74.00mm W x 45.90mm H | |
Backlight | LED - White | |
Dot Pixels | 160 x 104 | |
Interface | I²C, RS-232, SPI | |
Graphics Color | Black | |
Background Color | White | |
Dot Size | 0.42mm W x 0.40mm H | |
Dot Pitch | 0.43mm W x 0.41mm H | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | EA EDIP160W-7LW | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
EA EDIP160W-7LW is in stock for immediate shipping now. We are the distributor of Electronic Assembly GmbH all series components. The condition of EA EDIP160W-7LW is new and unused, you can buy EA EDIP160W-7LW Electronic Assembly GmbH with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EA EDIP160W-7LW.
