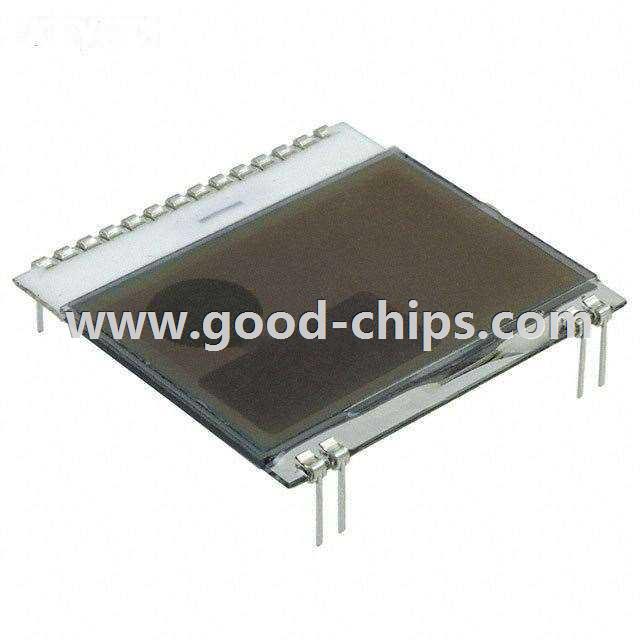

Manufacturer Part Number: | EA DOGS102W-6 |
---|---|
Manufacturer: | Electronic Assembly GmbH |
Product Category: | Display Modules - LCD, OLED, Graphic |
Available Quantity: | 11422 Pieces |
Unit Price: | Quote by Email |
Description: | Graphic LCD Display Module Transflective Black FSTN - Film Super-Twisted Nematic SPI 102 x 64 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | EA DOGS102W-6 Datasheet |
Internal Part Number | 898-EA DOGS102W-6 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | EA DOG Series | |
Category | Optoelectronics | |
Family | Display Modules - LCD, OLED, Graphic | |
Manufacturer | Electronic Assembly GmbH | |
Series | EA DOGS | |
Part Status | Active | |
Display Type | FSTN - Film Super-Twisted Nematic | |
Display Mode | Transflective | |
Touchscreen | - | |
Diagonal Screen Size | - | |
Viewing Area | 36.00mm W x 25.00mm H | |
Backlight | Without Backlight | |
Dot Pixels | 102 x 64 | |
Interface | SPI | |
Graphics Color | Black | |
Background Color | White | |
Dot Size | 0.32mm W x 0.34mm H | |
Dot Pitch | 0.33mm W x 0.35mm H | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | EA DOGS102W-6 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
EA DOGS102W-6 is in stock for immediate shipping now. We are the distributor of Electronic Assembly GmbH all series components. The condition of EA DOGS102W-6 is new and unused, you can buy EA DOGS102W-6 Electronic Assembly GmbH with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EA DOGS102W-6.
