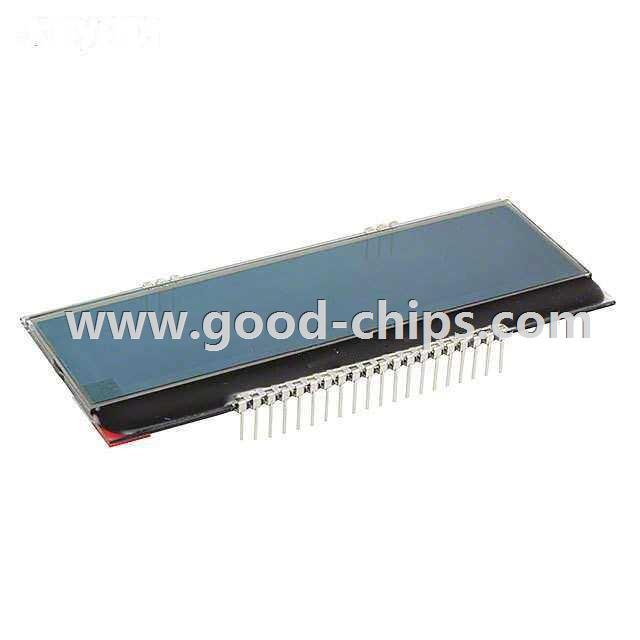

Manufacturer Part Number: | EA DOGM240S-6 |
---|---|
Manufacturer: | Electronic Assembly GmbH |
Product Category: | Display Modules - LCD, OLED, Graphic |
Available Quantity: | 9011 Pieces |
Unit Price: | Quote by Email |
Description: | Graphic LCD Display Module Transmissive White FSTN - Film Super-Twisted Nematic Parallel, 8-Bit, SPI 240 x 64 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | EA DOGM240S-6 Datasheet |
Internal Part Number | 898-EA DOGM240S-6 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | EA DOG Series | |
Category | Optoelectronics | |
Family | Display Modules - LCD, OLED, Graphic | |
Manufacturer | Electronic Assembly GmbH | |
Series | - | |
Part Status | Active | |
Display Type | FSTN - Film Super-Twisted Nematic | |
Display Mode | Transmissive | |
Touchscreen | - | |
Diagonal Screen Size | - | |
Viewing Area | 90.00mm W x 23.80mm H | |
Backlight | Without Backlight | |
Dot Pixels | 240 x 64 | |
Interface | Parallel, 8-Bit, SPI | |
Graphics Color | White | |
Background Color | Black | |
Dot Size | 0.33mm W x 0.30mm H | |
Dot Pitch | 0.35mm W x 0.35mm H | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | EA DOGM240S-6 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
EA DOGM240S-6 is in stock for immediate shipping now. We are the distributor of Electronic Assembly GmbH all series components. The condition of EA DOGM240S-6 is new and unused, you can buy EA DOGM240S-6 Electronic Assembly GmbH with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EA DOGM240S-6.
