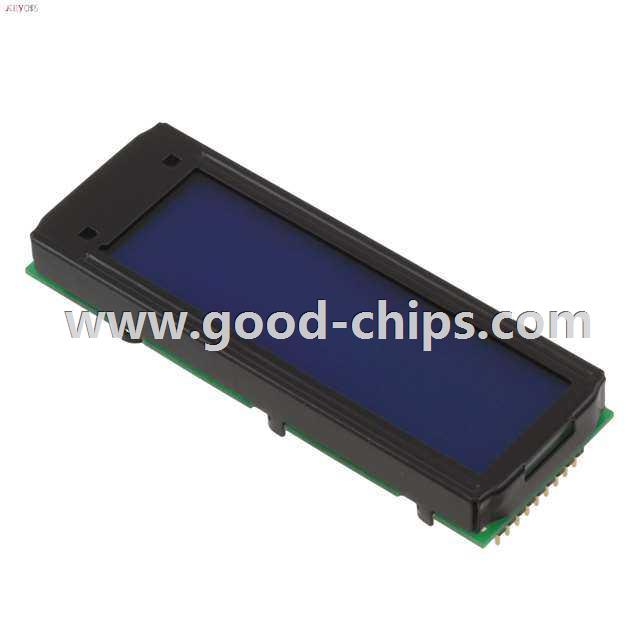

Manufacturer Part Number: | EA DIP203B-4NLW |
---|---|
Manufacturer: | Electronic Assembly GmbH |
Product Category: | Display Modules - LCD, OLED Character and Numeric |
Available Quantity: | 9021 Pieces |
Unit Price: | Quote by Email |
Description: | Character LCD Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic LED - White SPI 75.00mm x 26.80mm x 10.80mm |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | EA DIP203B-4NLW Datasheet |
Internal Part Number | 898-EA DIP203B-4NLW | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | LCD-Module 4x20 | |
Category | Optoelectronics | |
Family | Display Modules - LCD, OLED Character and Numeric | |
Manufacturer | Electronic Assembly GmbH | |
Series | EA DIP203 | |
Part Status | Active | |
Number of Characters | 80 | |
Display Format | 20 x 4 | |
Character Format | 5 x 8 Dots | |
Display Type | STN - Super-Twisted Nematic | |
Display Mode | Transmissive | |
Character Size | 3.75mm H x 2.34mm W | |
Outline L x W x H | 75.00mm x 26.80mm x 10.80mm | |
Viewing Area | 61.00mm L x 19.00mm W | |
Backlight | LED - White | |
Voltage - Supply | 2.7 V ~ 3.45 V | |
Dot Size | 0.44mm W x 0.46mm H | |
Interface | SPI | |
Operating Temperature | -20°C ~ 70°C | |
Text Color | White | |
Background Color | Blue | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | EA DIP203B-4NLW | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
EA DIP203B-4NLW is in stock for immediate shipping now. We are the distributor of Electronic Assembly GmbH all series components. The condition of EA DIP203B-4NLW is new and unused, you can buy EA DIP203B-4NLW Electronic Assembly GmbH with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EA DIP203B-4NLW.
