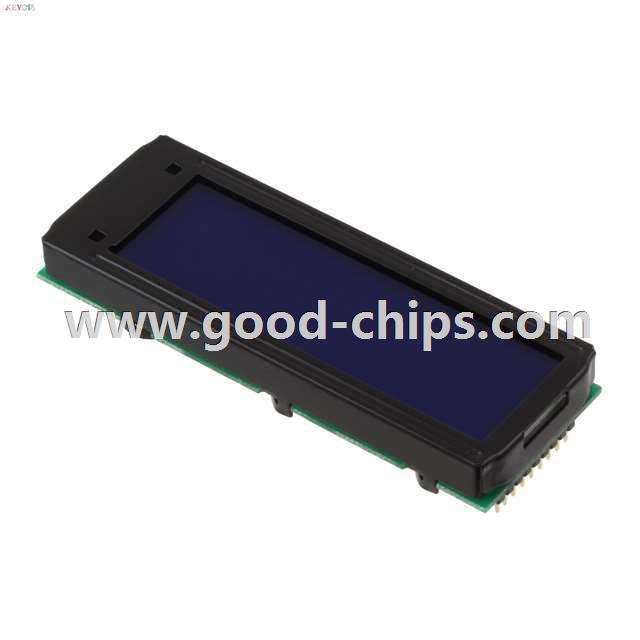

| Manufacturer Part Number: | EA DIP162-DN3LW |
|---|---|
| Manufacturer: | Electronic Assembly GmbH |
| Product Category: | Display Modules - LCD, OLED Character and Numeric |
| Available Quantity: | 9046 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LCD Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic LED - White Parallel, 8-Bit 66.00mm x 26.80mm x 10.80mm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EA DIP162-DN3LW Datasheet |
| Internal Part Number | 898-EA DIP162-DN3LW | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | LCD-Module 2x16 | |
| Category | Optoelectronics | |
| Family | Display Modules - LCD, OLED Character and Numeric | |
| Manufacturer | Electronic Assembly GmbH | |
| Series | EA DIP162-D | |
| Part Status | Active | |
| Number of Characters | 32 | |
| Display Format | 16 x 2 | |
| Character Format | 5 x 8 Dots | |
| Display Type | STN - Super-Twisted Nematic | |
| Display Mode | Transmissive | |
| Character Size | 6.68mm H x 2.96mm W | |
| Outline L x W x H | 66.00mm x 26.80mm x 10.80mm | |
| Viewing Area | 61.00mm L x 19.00mm W | |
| Backlight | LED - White | |
| Voltage - Supply | 5V | |
| Dot Size | 0.56mm W x 0.80mm H | |
| Interface | Parallel, 8-Bit | |
| Operating Temperature | -20°C ~ 70°C | |
| Text Color | White | |
| Background Color | Blue | |
| Standard Package | 21 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EA DIP162-DN3LW | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EA DIP162-DN3LW is in stock for immediate shipping now. We are the distributor of Electronic Assembly GmbH all series components. The condition of EA DIP162-DN3LW is new and unused, you can buy EA DIP162-DN3LW Electronic Assembly GmbH with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EA DIP162-DN3LW.
