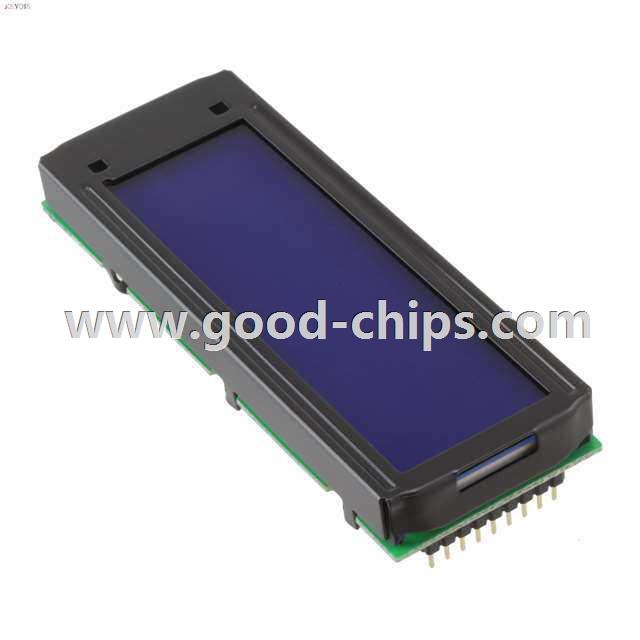

| Manufacturer Part Number: | EA DIP122B-5NLW |
|---|---|
| Manufacturer: | Electronic Assembly GmbH |
| Product Category: | Display Modules - LCD, OLED, Graphic |
| Available Quantity: | 9036 Pieces |
| Unit Price: | Quote by Email |
| Description: | Graphic LCD Display Module Transflective White STN - Super-Twisted Nematic Parallel, 8-Bit 122 x 32 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EA DIP122B-5NLW Datasheet |
| Internal Part Number | 898-EA DIP122B-5NLW | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | EA DIP Graphic Series | |
| Category | Optoelectronics | |
| Family | Display Modules - LCD, OLED, Graphic | |
| Manufacturer | Electronic Assembly GmbH | |
| Series | EA DIP122-5 | |
| Part Status | Active | |
| Display Type | STN - Super-Twisted Nematic | |
| Display Mode | Transflective | |
| Touchscreen | - | |
| Diagonal Screen Size | - | |
| Viewing Area | 61.00mm W x 19.00mm H | |
| Backlight | LED - White | |
| Dot Pixels | 122 x 32 | |
| Interface | Parallel, 8-Bit | |
| Graphics Color | White | |
| Background Color | Blue | |
| Dot Size | 0.42mm W x 0.47mm H | |
| Dot Pitch | 0.46mm W x 0.51mm H | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EA DIP122B-5NLW | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EA DIP122B-5NLW is in stock for immediate shipping now. We are the distributor of Electronic Assembly GmbH all series components. The condition of EA DIP122B-5NLW is new and unused, you can buy EA DIP122B-5NLW Electronic Assembly GmbH with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EA DIP122B-5NLW.
