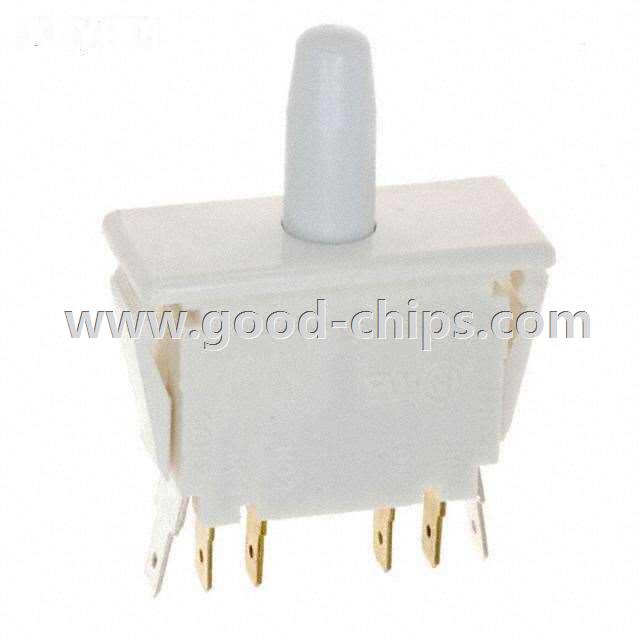

Manufacturer Part Number: | E79-00A |
---|---|
Manufacturer: | Cherry |
Product Category: | Snap Action, Limit Switches |
Available Quantity: | 11288 Pieces |
Unit Price: | Quote by Email |
Description: | SWITCH SNAP ACTION DPDT 10A 125V |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | E79-00A Datasheet |
Internal Part Number | 898-E79-00A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | E Series | |
Category | Switches | |
Family | Snap Action, Limit Switches | |
Manufacturer | Cherry | |
Series | E | |
Packaging | Bulk | |
Part Status | Active | |
Circuit | DPDT | |
Switch Function | On-Mom | |
Current Rating | 10A (AC) | |
Voltage Rating - AC | 125V | |
Voltage Rating - DC | - | |
Actuator Type | Round (Pin Plunger) | |
Mounting Type | Panel Mount, Snap-In | |
Termination Style | Quick Connect - 0.187" (4.7mm) | |
Ingress Protection | - | |
Features | - | |
Operating Force, Torque | 680gf | |
Release Force | - | |
Pretravel | 0.125" (3.2mm) | |
Differential Travel | 0.075" (1.9mm) | |
Overtravel | 0.375" (9.5mm) | |
Operating Position | 0.720" (18.3mm) | |
Mechanical Life | - | |
Electrical Life | 6,000 Cycles | |
Operating Temperature | -40°C ~ 85°C | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | E79-00A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
E79-00A is in stock for immediate shipping now. We are the distributor of Cherry all series components. The condition of E79-00A is new and unused, you can buy E79-00A Cherry with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for E79-00A.
