Manufacturer Part Number: | E6240 |
---|---|
Manufacturer: | Atmel |
Product Category: | Evaluation Boards - Sensors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

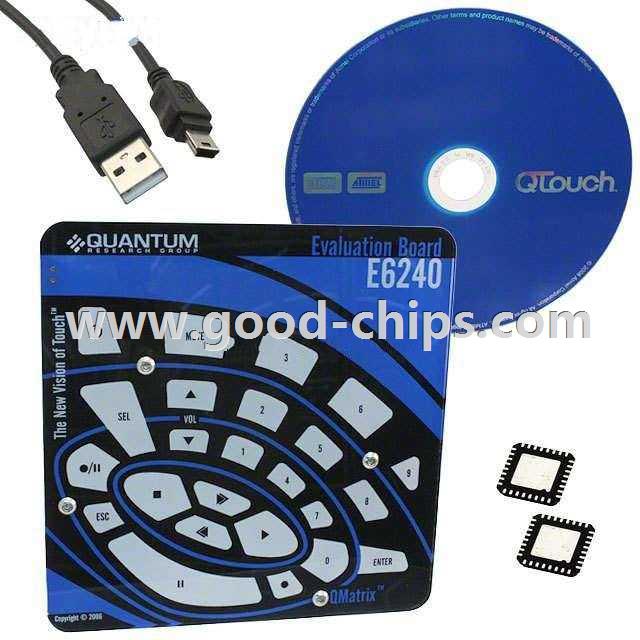

Description: | QT60160, QT60240 Quantum, QMatrix™ Touch, Capacitive Sensor Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | E6240 Datasheet |
Internal Part Number | 898-E6240 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Introducing Atmel Studio 7 | |
Design Resources | Development Tool Selector | |
Reference Design Library | E6240: 24 or 16 Capacitive Buttons, I2C | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Sensors | |
Manufacturer | Atmel | |
Series | Quantum, QMatrix™ | |
Part Status | Obsolete | |
Sensor Type | Touch, Capacitive | |
Sensing Range | 16 / 24 Buttons/Keys | |
Interface | I²C, USB | |
Sensitivity | - | |
Voltage - Supply | 5V | |
Embedded | No | |
Supplied Contents | Board, Cable, Samples | |
Utilized IC / Part | QT60160, QT60240 | |
Standard Package | 3 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | E6240 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
E6240 is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of E6240 is new and unused, you can buy E6240 Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for E6240.
