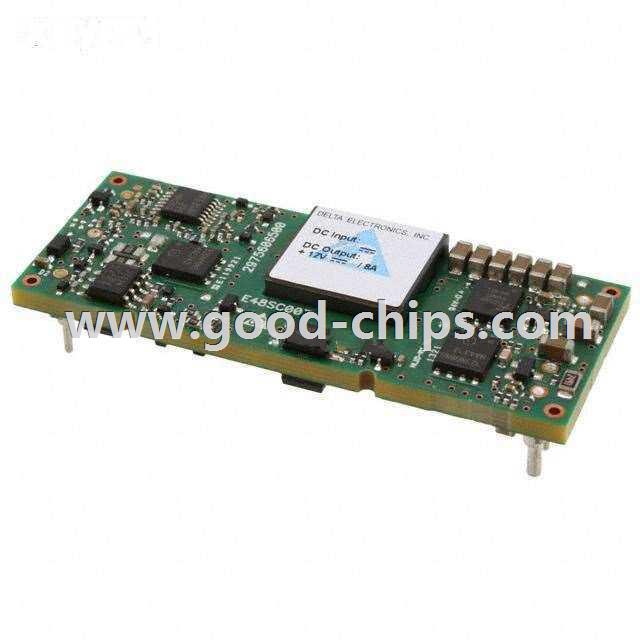

Manufacturer Part Number: | E48SC12005NNFA |
---|---|
Manufacturer: | Delta Electronics |
Product Category: | DC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | DC/DC CONVERTER 12V 5A 60W |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | E48SC12005NNFA Datasheet |
Internal Part Number | 898-E48SC12005NNFA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | DC/DC Converters – Delta Product Groups | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | Delta Electronics | |
Series | Delphi E48SC | |
Packaging | Bulk | |
Part Status | Active | |
Type | Isolated Module | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 36V | |
Voltage - Input (Max) | 75V | |
Voltage - Output 1 | 12V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 5A | |
Power (Watts) - Manufacture Series | 60W | |
Voltage - Isolation | 2.25kV (2250V) | |
Applications | ITE (Commercial) | |
Features | Remote On/Off, OCP, OTP, OVP, UVLO | |
Mounting Type | Through Hole | |
Package / Case | 8-DIP Module, 1/8 Brick | |
Size / Dimension | 2.30" L x 0.90" W x 0.33" H (58.4mm x 22.8mm x 8.4mm) | |
Operating Temperature | -40°C ~ 117°C | |
Efficiency | 92% | |
Power (Watts) - Max | 60W | |
Standard Package | 21 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | E48SC12005NNFA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
E48SC12005NNFA is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of E48SC12005NNFA is new and unused, you can buy E48SC12005NNFA Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for E48SC12005NNFA.
