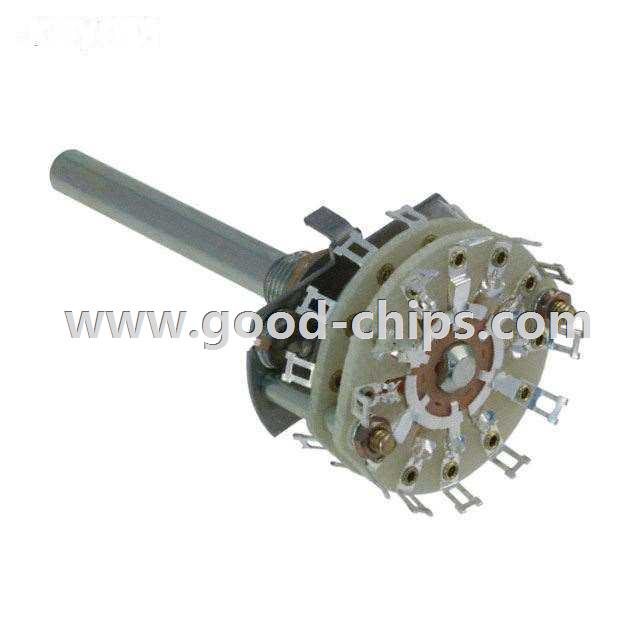

| Manufacturer Part Number: | E3G0603N-2 |
|---|---|
| Manufacturer: | Electroswitch |
| Product Category: | Rotary Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Rotary Switch 3 Position 3P3T 500mA (AC), 1.5A (DC) 115VAC Panel Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | E3G0603N-2 Datasheet |
| Internal Part Number | 898-E3G0603N-2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Switches | |
| Family | Rotary Switches | |
| Manufacturer | Electroswitch | |
| Series | E3 | |
| Part Status | Active | |
| Number of Positions | 3 | |
| Index Stops | Fixed | |
| Number of Decks | 2 | |
| Number of Poles per Deck | 3 | |
| Circuit per Deck | 3P3T | |
| Contact Timing | Non-Shorting (BBM) | |
| Current Rating | 500mA (AC), 1.5A (DC) | |
| Voltage Rating - AC | 115V | |
| Voltage Rating - DC | 28V | |
| Actuator Type | Round (6.35mm Dia) | |
| Actuator Length | 47.63mm | |
| Angle of Throw | 30° | |
| Contact Material | Brass | |
| Contact Finish | Silver | |
| Mounting Type | Panel Mount | |
| Termination Style | Solder Lug | |
| Features | Spring Return | |
| Depth Behind Panel | 11.96mm | |
| Panel Cutout Dimensions | Circular - 9.78mm Dia | |
| Operating Force, Torque | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | E3G0603N-2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
E3G0603N-2 is in stock for immediate shipping now. We are the distributor of Electroswitch all series components. The condition of E3G0603N-2 is new and unused, you can buy E3G0603N-2 Electroswitch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for E3G0603N-2.
