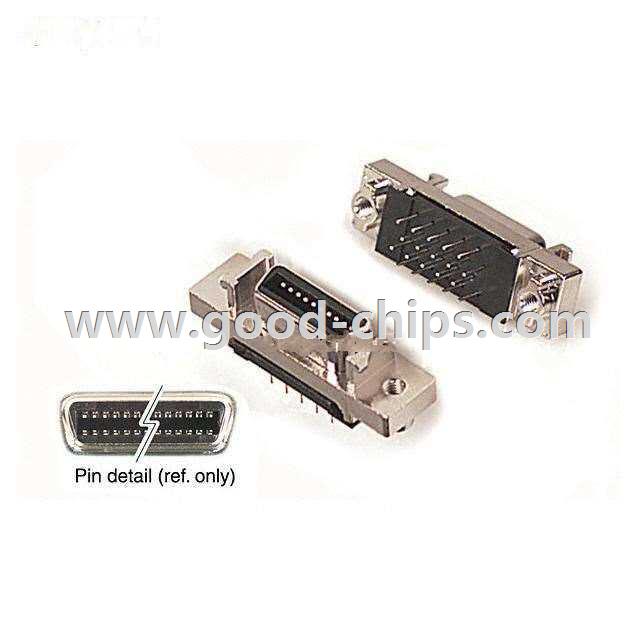

| Manufacturer Part Number: | DX20M-20S |
|---|---|
| Manufacturer: | Hirose Electric Co Ltd |
| Product Category: | D-Shaped Connectors - Centronics |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 20 Position Receptacle Connector Miniature High Density (HD) Panel Mount, Through Hole Solder |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DX20M-20S Datasheet |
| Internal Part Number | 898-DX20M-20S | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | D-Shaped Connectors - Centronics | |
| Manufacturer | Hirose Electric Co Ltd | |
| Series | DXM | |
| Part Status | Obsolete | |
| Connector Style | Outer Shroud Contacts | |
| Connector Type | Receptacle | |
| Number of Positions | 20 | |
| Number of Rows | 2 | |
| Mounting Type | Panel Mount, Through Hole | |
| Termination | Solder | |
| Flange Feature | Insert, Threaded (M2.6); Latchblocks | |
| Type | Miniature High Density (HD) | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Standard Package | 60 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DX20M-20S | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DX20M-20S is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of DX20M-20S is new and unused, you can buy DX20M-20S Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DX20M-20S.
