| Manufacturer Part Number: | DX07B024JJ2R1500 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | USB, DVI, HDMI Connectors |
| Available Quantity: | 13510 Pieces |
| Unit Price: | Quote by Email |

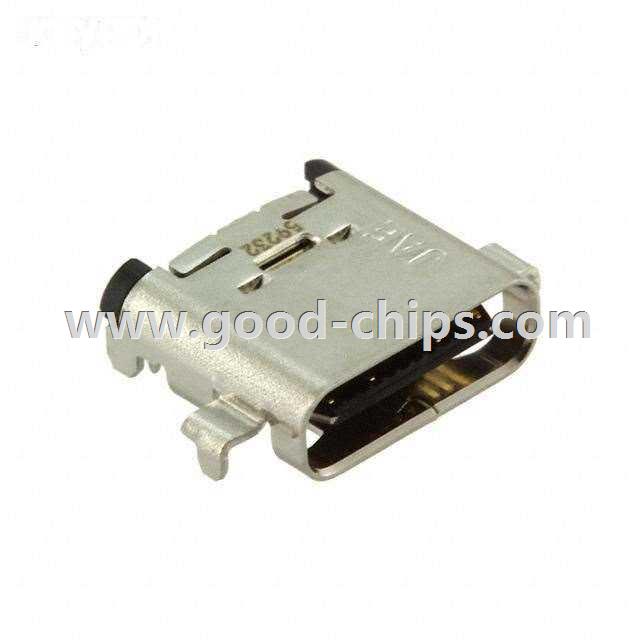

| Description: | USB - C Receptacle Connector 24 Position Board Cutout, Surface Mount, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DX07B024JJ2R1500 Datasheet |
| Internal Part Number | 898-DX07B024JJ2R1500 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | DX07 Series of USB Type-C Connector | |
| Featured Product | USB Type-C™ Connector DX07 Series | |
| Online Catalog | JAE Electronics - USB | |
| Category | Connectors, Interconnects | |
| Family | USB, DVI, HDMI Connectors | |
| Manufacturer | JAE Electronics | |
| Series | DX07 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Connector Type | USB - C | |
| Number of Contacts | 24 | |
| Gender | Receptacle | |
| Specifications | - | |
| Mounting Type | Board Cutout, Surface Mount, Right Angle | |
| Features | Board Guide, Shielded | |
| Ingress Protection | - | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DX07B024JJ2R1500 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DX07B024JJ2R1500 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of DX07B024JJ2R1500 is new and unused, you can buy DX07B024JJ2R1500 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DX07B024JJ2R1500.
