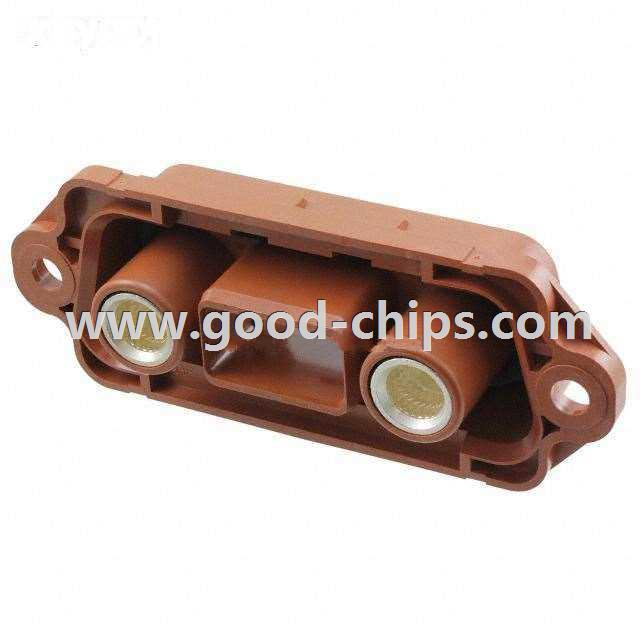

| Manufacturer Part Number: | DW1R002ZH1 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Backplane Connectors - Specialized |
| Available Quantity: | 9050 Pieces |
| Unit Price: | Quote by Email |
| Description: | DW1 SERIES RECEPTACLE |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DW1R002ZH1 Datasheet |
| Internal Part Number | 898-DW1R002ZH1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | DW Series Connectors | |
| Online Catalog | DW Series | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - Specialized | |
| Manufacturer | JAE Electronics | |
| Series | DW1 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Usage | - | |
| Connector Type | Receptacle, Male Pins | |
| Connector Style | Rack and Panel | |
| Number of Positions | 2 | |
| Number of Positions Loaded | All | |
| Pitch | - | |
| Number of Rows | - | |
| Number of Columns | - | |
| Mounting Type | Panel Mount | |
| Termination | - | |
| Contact Layout, Typical | 2 Power | |
| Features | - | |
| Contact Finish | Silver | |
| Contact Finish Thickness | - | |
| Color | Brown | |
| Current Rating | 200A | |
| Material Flammability Rating | UL94 V-0 | |
| Operating Temperature | -25°C ~ 115°C | |
| Voltage Rating | 600V | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DW1R002ZH1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DW1R002ZH1 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of DW1R002ZH1 is new and unused, you can buy DW1R002ZH1 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DW1R002ZH1.
