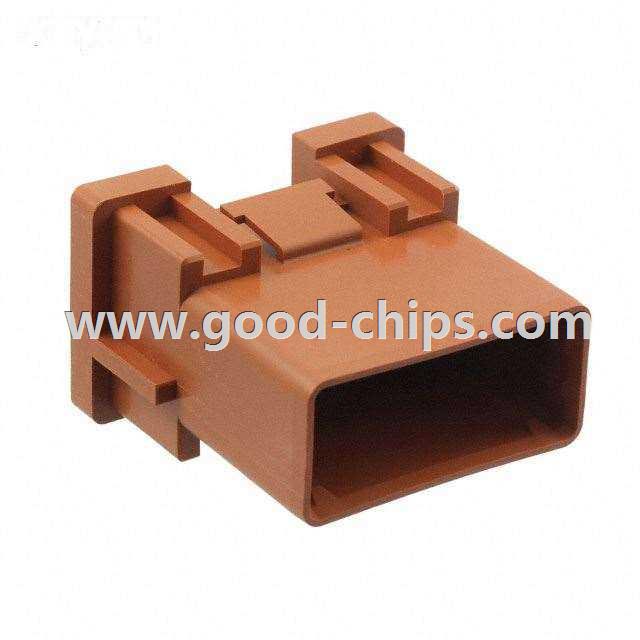

| Manufacturer Part Number: | DW1P020 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Backplane Connectors - Housings |
| Available Quantity: | 9051 Pieces |
| Unit Price: | Quote by Email |
| Description: | 20 Position Housing for Male Pins Connector Black Free Hanging (In-Line) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DW1P020 Datasheet |
| Internal Part Number | 898-DW1P020 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | DW Series Connectors | |
| Online Catalog | DW Series | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - Housings | |
| Manufacturer | JAE Electronics | |
| Series | DW1 | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | Housing for Male Pins | |
| Connector Style | - | |
| Number of Positions | 20 | |
| Pitch | 0.138" (3.50mm) | |
| Number of Rows | 4 | |
| Mounting Type | Free Hanging (In-Line) | |
| Connector Usage | - | |
| Features | Polarizing Key | |
| Color | Black | |
| Note | Contacts Not Provided | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DW1P020 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DW1P020 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of DW1P020 is new and unused, you can buy DW1P020 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DW1P020.
