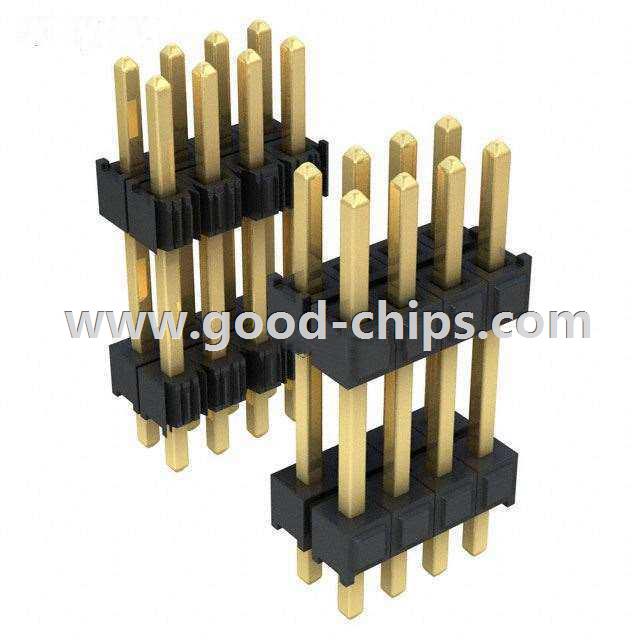

Manufacturer Part Number: | DW-16-12-G-D-665 |
---|---|
Manufacturer: | Samtec Inc. |
Product Category: | Rectangular - Board to Board Connectors - Board Spacers, Stackers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 32 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DW-16-12-G-D-665 Datasheet |
Internal Part Number | 898-DW-16-12-G-D-665 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Connectors, Interconnects | |
Family | Rectangular - Board to Board Connectors - Board Spacers, Stackers | |
Manufacturer | Samtec Inc. | |
Series | Flex Stack, DW | |
Packaging | Tube | |
Part Status | Active | |
Number of Positions | 32 | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 2 | |
Row Spacing | 0.100" (2.54mm) | |
Length - Overall | 1.030" (26.16mm) | |
Length - Post (Mating) | 0.255" (6.48mm) | |
Length - Stack Height | 0.665" (16.89mm) | |
Length - Tail | 0.110" (2.79mm) | |
Mounting Type | Through Hole | |
Termination | Solder | |
Contact Finish - Post (Mating) | Gold | |
Contact Finish Thickness - Post (Mating) | 10µin (0.25µm) | |
Color | Black | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DW-16-12-G-D-665 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DW-16-12-G-D-665 is in stock for immediate shipping now. We are the distributor of Samtec Inc. all series components. The condition of DW-16-12-G-D-665 is new and unused, you can buy DW-16-12-G-D-665 Samtec Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DW-16-12-G-D-665.
