| Manufacturer Part Number: | DW-08-12-G-D-665 |
|---|---|
| Manufacturer: | Samtec Inc. |
| Product Category: | Rectangular - Board to Board Connectors - Board Spacers, Stackers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

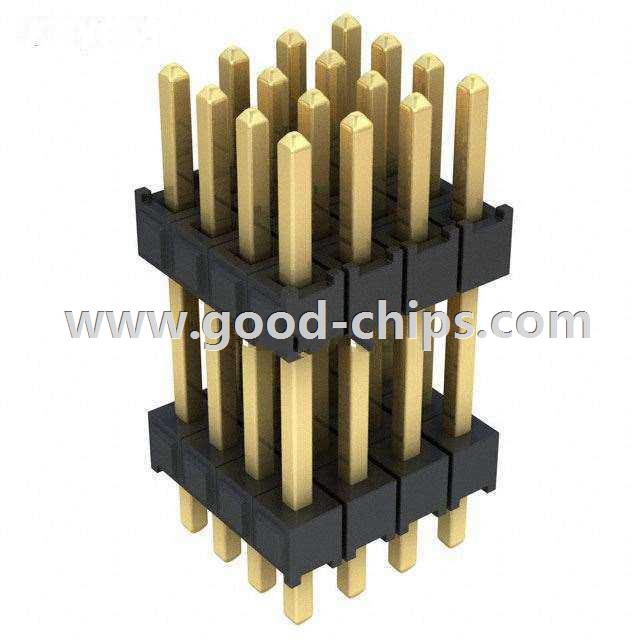

| Description: | 16 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DW-08-12-G-D-665 Datasheet |
| Internal Part Number | 898-DW-08-12-G-D-665 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Board Spacers, Stackers | |
| Manufacturer | Samtec Inc. | |
| Series | Flex Stack, DW | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Positions | 16 | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.100" (2.54mm) | |
| Length - Overall | 1.030" (26.16mm) | |
| Length - Post (Mating) | 0.255" (6.48mm) | |
| Length - Stack Height | 0.665" (16.89mm) | |
| Length - Tail | 0.110" (2.79mm) | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Contact Finish - Post (Mating) | Gold | |
| Contact Finish Thickness - Post (Mating) | 10µin (0.25µm) | |
| Color | Black | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DW-08-12-G-D-665 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DW-08-12-G-D-665 is in stock for immediate shipping now. We are the distributor of Samtec Inc. all series components. The condition of DW-08-12-G-D-665 is new and unused, you can buy DW-08-12-G-D-665 Samtec Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DW-08-12-G-D-665.
