Manufacturer Part Number: | DV330021 |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | Evaluation and Demonstration Boards and Kits |
Available Quantity: | 9012 Pieces |
Unit Price: | Quote by Email |
Description: | dsPIC33F dsPICDEM™ Series Power Management, Motor Control Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DV330021 Datasheet |
Internal Part Number | 898-DV330021 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
Reference Design Library | DV330021: 3A @ < 80V, Bi-/Uni-Polar Stepper | |
PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
Online Catalog | dsPICDEM™ Development Boards | |
Category | Programmers, Development Systems | |
Family | Evaluation and Demonstration Boards and Kits | |
Manufacturer | Microchip Technology | |
Series | dsPICDEM™ | |
Part Status | Active | |
Main Purpose | Power Management, Motor Control | |
Embedded | Yes, MCU, 16-Bit | |
Utilized IC / Part | dsPIC33F | |
Primary Attributes | - | |
Secondary Attributes | LED Status Indicators | |

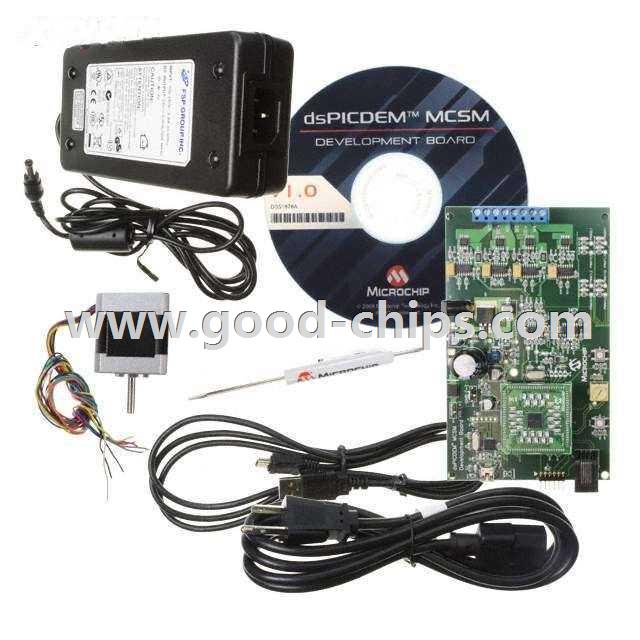

Supplied Contents | Board, Cables, Motor, Power Supply | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DV330021 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DV330021 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of DV330021 is new and unused, you can buy DV330021 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DV330021.
