| Manufacturer Part Number: | DUAL-MOTOR-CONTROL-KIT-2 |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | A2F200M3F-FGG484ES SmartFusion® Series Power Management, Motor Control Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DUAL-MOTOR-CONTROL-KIT-2 Datasheet |
| Internal Part Number | 898-DUAL-MOTOR-CONTROL-KIT-2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Online Catalog | SmartFusion® Evaluation Board DUAL-MOTOR-CONTROL-KIT-2 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Microsemi Corporation | |
| Series | SmartFusion® | |
| Part Status | Active | |
| Main Purpose | Power Management, Motor Control | |
| Embedded | Yes, Other | |
| Utilized IC / Part | A2F200M3F-FGG484ES | |
| Primary Attributes | Brushless DC (BLDC) and Bipolar Stepper Motors | |
| Secondary Attributes | USB Interface | |

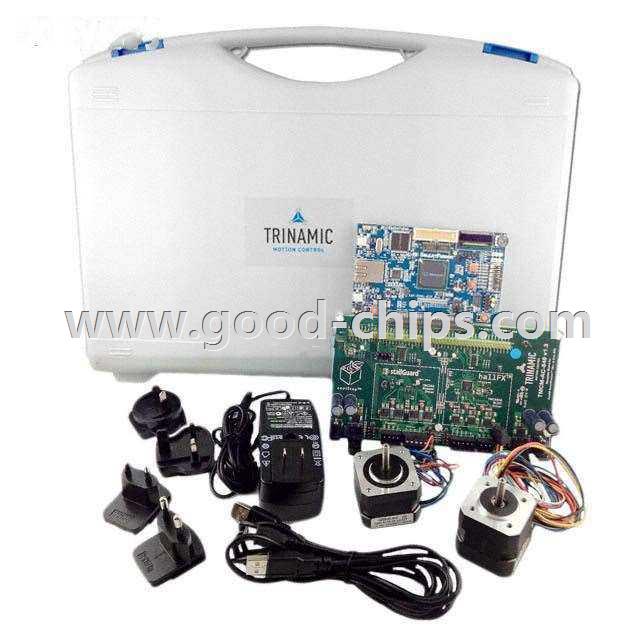

| Supplied Contents | 2 Boards, Cables, Power Supply, Stepper and BLDC Motors, Storage Case | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DUAL-MOTOR-CONTROL-KIT-2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DUAL-MOTOR-CONTROL-KIT-2 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of DUAL-MOTOR-CONTROL-KIT-2 is new and unused, you can buy DUAL-MOTOR-CONTROL-KIT-2 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DUAL-MOTOR-CONTROL-KIT-2.
