| Manufacturer Part Number: | DTB743ZETL |
|---|---|
| Manufacturer: | Rohm Semiconductor |
| Product Category: | Transistors - Bipolar (BJT) - Single, Pre-Biased |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS PREBIAS PNP 150MW EMT3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DTB743ZETL Datasheet |
| Internal Part Number | 898-DTB743ZETL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - Single, Pre-Biased | |
| Manufacturer | Rohm Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Not For New Designs | |
| Transistor Type | PNP - Pre-Biased | |
| Current - Collector (Ic) (Max) | 200mA | |
| Voltage - Collector Emitter Breakdown (Max) | 30V | |
| Resistor - Base (R1) (Ohms) | 4.7k | |
| Resistor - Emitter Base (R2) (Ohms) | 47k | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 140 @ 100mA, 2V | |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 2.5mA, 50mA | |
| Current - Collector Cutoff (Max) | 500nA | |
| Frequency - Transition | 260MHz | |
| Power - Max | 150mW | |
| Mounting Type | Surface Mount | |

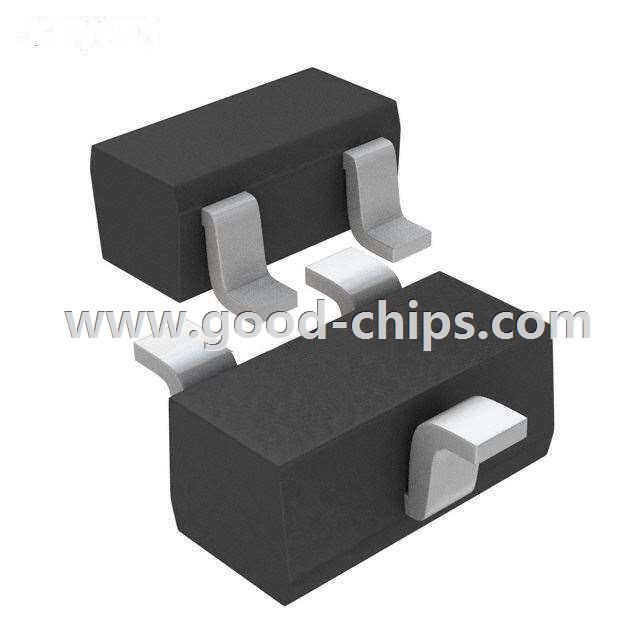

| Package / Case | SC-75, SOT-416 | |
| Supplier Device Package | EMT3 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DTB743ZETL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DTB743ZETL is in stock for immediate shipping now. We are the distributor of Rohm Semiconductor all series components. The condition of DTB743ZETL is new and unused, you can buy DTB743ZETL Rohm Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DTB743ZETL.
