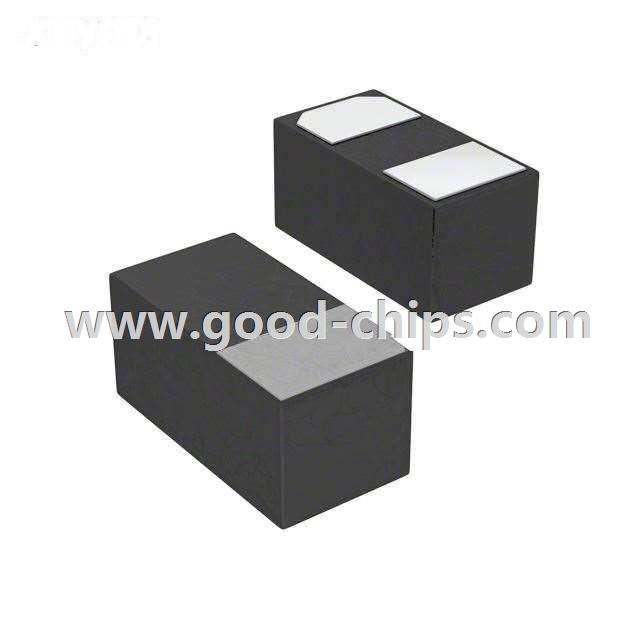

 SC2.jpg)
| Manufacturer Part Number: | DSR01S30SC(TPL3) |
|---|---|
| Manufacturer: | Toshiba Semiconductor and Storage |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 39010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE SCHOTTKY 30V 100MA SC2 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DSR01S30SC(TPL3) Datasheet |
| Internal Part Number | 898-DSR01S30SC(TPL3) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | General Purpose Discrete Items | |
| Online Catalog | Schottky Barrier Diodes | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Toshiba Semiconductor and Storage | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 30V | |
| Current - Average Rectified (Io) | 100mA | |
| Voltage - Forward (Vf) (Max) @ If | 620mV @ 100mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 700µA @ 30V | |
| Capacitance @ Vr, F | 8.2pF @ 0V, 1MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 2-SMD, No Lead | |
| Supplier Device Package | SC2 | |
| Operating Temperature - Junction | 125°C (Max) | |
| Standard Package | 10,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DSR01S30SC(TPL3) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DSR01S30SC(TPL3) is in stock for immediate shipping now. We are the distributor of Toshiba Semiconductor and Storage all series components. The condition of DSR01S30SC(TPL3) is new and unused, you can buy DSR01S30SC(TPL3) Toshiba Semiconductor and Storage with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DSR01S30SC(TPL3).
