| Manufacturer Part Number: | DSPIC33FJ09GS302-I/TL |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9048 Pieces |
| Unit Price: | Quote by Email |
| Description: | dsPIC dsPIC™ 33F Microcontroller IC 16-Bit 40 MIPs 9KB (3K x 24) FLASH 36-VTLA (5x5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DSPIC33FJ09GS302-I/TL Datasheet |
| Internal Part Number | 898-DSPIC33FJ09GS302-I/TL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Interleaved Power Factor Correction Bluetooth Audio Development Platform | |
| Design Resources | Development Tool Selector | |
| Featured Product | DM330017 MPLAB® Starter Kit for Digital Power | |
| PCN Design/Specification | Errata and Datasheet Update 01/Oct/2013 Errata/Datasheet Update 13/Oct/2014 | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | dsPIC™ 33F | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Microchip Technology | |
| Series | dsPIC™ 33F | |
| Packaging | Tube | |
| Part Status | Active | |
| Core Processor | dsPIC | |
| Core Size | 16-Bit | |
| Speed | 40 MIPs | |
| Connectivity | I²C, IrDA, LIN, SPI, UART/USART | |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | |
| Number of I/O | 21 | |
| Program Memory Size | 9KB (3K x 24) | |
| Program Memory Type | FLASH | |
| EEPROM Size | - | |
| RAM Size | 1K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 3 V ~ 3.6 V | |
| Data Converters | A/D 8x10b, D/A 2x10b | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

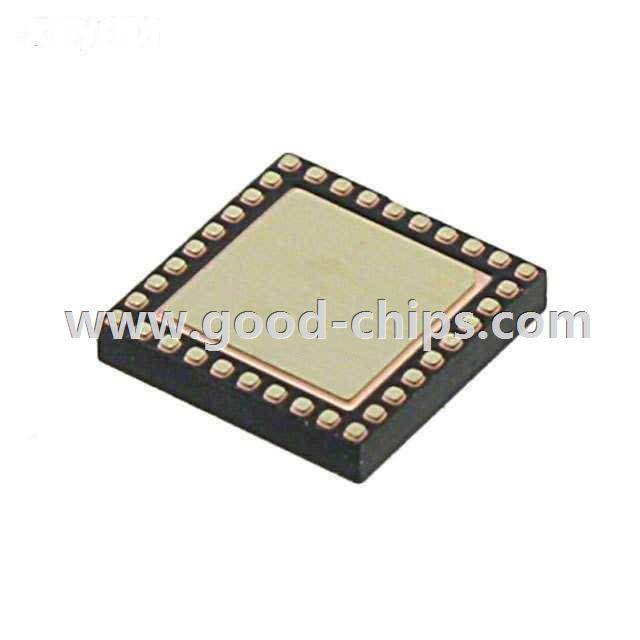

| Package / Case | 36-VFTLA Exposed Pad | |
| Supplier Device Package | 36-VTLA (5x5) | |
| Standard Package | 73 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DSPIC33FJ09GS302-I/TL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DSPIC33FJ09GS302-I/TL is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of DSPIC33FJ09GS302-I/TL is new and unused, you can buy DSPIC33FJ09GS302-I/TL Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DSPIC33FJ09GS302-I/TL.
