Manufacturer Part Number: | DSM10G-TR-E |
---|---|
Manufacturer: | ON Semiconductor |
Product Category: | Diodes - Rectifiers - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | DIODE GEN PURP 600V 1A SMD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DSM10G-TR-E Datasheet |
Internal Part Number | 898-DSM10G-TR-E | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Single | |
Manufacturer | ON Semiconductor | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Not Recommended For New Designs | |
Diode Type | Standard | |
Voltage - DC Reverse (Vr) (Max) | 600V | |
Current - Average Rectified (Io) | 1A | |
Voltage - Forward (Vf) (Max) @ If | 1.1V @ 1A | |
Speed | Standard Recovery >500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | - | |
Current - Reverse Leakage @ Vr | 10µA @ 600V | |
Capacitance @ Vr, F | - | |
Mounting Type | Surface Mount | |

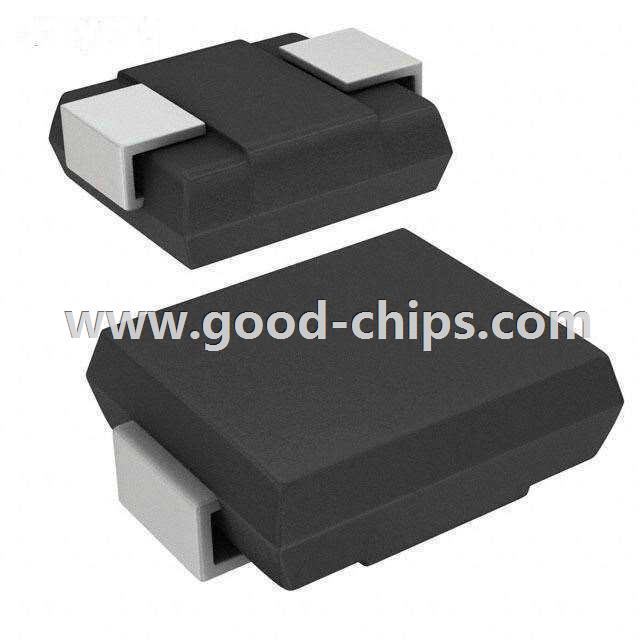

Package / Case | 2-SMD, J-Lead | |
Supplier Device Package | SMD | |
Operating Temperature - Junction | 150°C (Max) | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DSM10G-TR-E | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DSM10G-TR-E is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of DSM10G-TR-E is new and unused, you can buy DSM10G-TR-E ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DSM10G-TR-E.
