Manufacturer Part Number: | DSEC59-03AQ |
---|---|
Manufacturer: | IXYS |
Product Category: | Diodes - Rectifiers - Arrays |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Diode Array 1 Pair Common Cathode Standard 300V 30A Through Hole TO-3P-3, SC-65-3 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DSEC59-03AQ Datasheet |
Internal Part Number | 898-DSEC59-03AQ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Standard Package | 30 | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Arrays | |
Manufacturer | IXYS | |
Series | HiPerFRED™ | |
Packaging | Tube | |
Part Status | Active | |
Diode Configuration | 1 Pair Common Cathode | |
Diode Type | Standard | |
Voltage - DC Reverse (Vr) (Max) | 300V | |
Current - Average Rectified (Io) (per Diode) | 30A | |
Voltage - Forward (Vf) (Max) @ If | 1.34V @ 30A | |
Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | 35ns | |
Current - Reverse Leakage @ Vr | 1µA @ 300V | |
Mounting Type | Through Hole | |

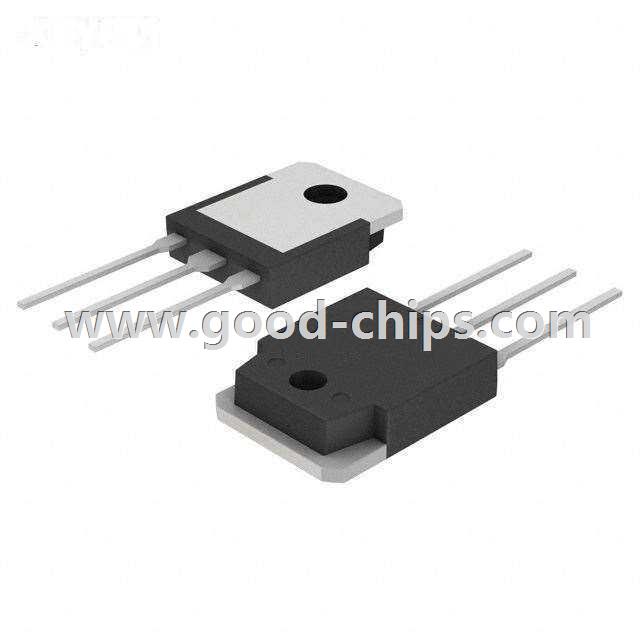

Package / Case | TO-3P-3, SC-65-3 | |
Supplier Device Package | TO-3P | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DSEC59-03AQ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DSEC59-03AQ is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of DSEC59-03AQ is new and unused, you can buy DSEC59-03AQ IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DSEC59-03AQ.
