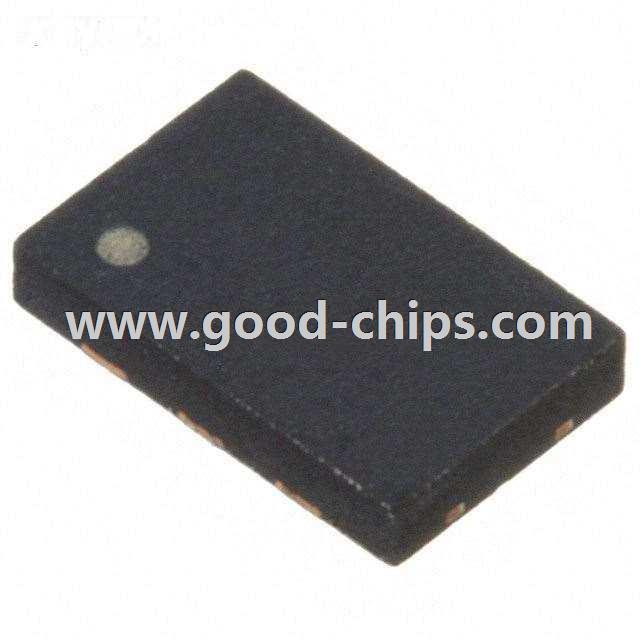

Manufacturer Part Number: | DSC8101BL2 |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | Programmable Oscillators |
Available Quantity: | 9874 Pieces |
Unit Price: | Quote by Email |
Description: | 10MHz ~ 170MHz CMOS MEMS (Silicon) Programmable Oscillator Surface Mount 2.25 V ~ 3.6 V 35mA Standby |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DSC8101BL2 Datasheet |
Internal Part Number | 898-DSC8101BL2 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | DSC8101 and DSC8121 Series | |
Category | Crystals and Oscillators | |
Family | Programmable Oscillators | |
Manufacturer | Microchip Technology | |
Series | DSC8101 | |
Packaging | Tube | |
Part Status | Active | |
Type | MEMS (Silicon) | |
Programmable Type | Blank (User Must Program) | |
Available Frequency Range | 10MHz ~ 170MHz | |
Function | Standby | |
Output | CMOS | |
Voltage - Supply | 2.25 V ~ 3.6 V | |
Frequency Stability | ±25ppm | |
Frequency Stability (Total) | - | |
Operating Temperature | -40°C ~ 105°C | |
Spread Spectrum Bandwidth | - | |
Current - Supply (Max) | 35mA | |
Ratings | - | |
Mounting Type | Surface Mount | |
Package / Case | 4-SMD, No Lead (DFN, LCC) | |
Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) | |
Height | 0.035" (0.90mm) | |
Current - Supply (Disable) (Max) | 95µA | |
Standard Package | 72 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DSC8101BL2 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DSC8101BL2 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of DSC8101BL2 is new and unused, you can buy DSC8101BL2 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DSC8101BL2.
