Manufacturer Part Number: | DSC1123DI2-106.2500T |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | Oscillators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 106.25MHz LVDS MEMS (Silicon) Oscillator Surface Mount 2.25 V ~ 3.6 V 32mA Enable/Disable |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DSC1123DI2-106.2500T Datasheet |
Internal Part Number | 898-DSC1123DI2-106.2500T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Mfg Application Notes | Clock System Design High-Speed PECL and LVPECL Termination | |
Category | Crystals and Oscillators | |
Family | Oscillators | |
Manufacturer | Microchip Technology | |
Series | DSC1123 | |
Packaging | Tape & Reel (TR) | |
Part Status | Quote Required | |
Type | MEMS (Silicon) | |
Frequency | 106.25MHz | |
Function | Enable/Disable | |
Output | LVDS | |
Voltage - Supply | 2.25 V ~ 3.6 V | |
Frequency Stability | ±25ppm | |
Operating Temperature | -40°C ~ 85°C | |
Current - Supply (Max) | 32mA | |
Ratings | AEC-Q100 | |
Mounting Type | Surface Mount | |
Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
Height | 0.035" (0.90mm) | |

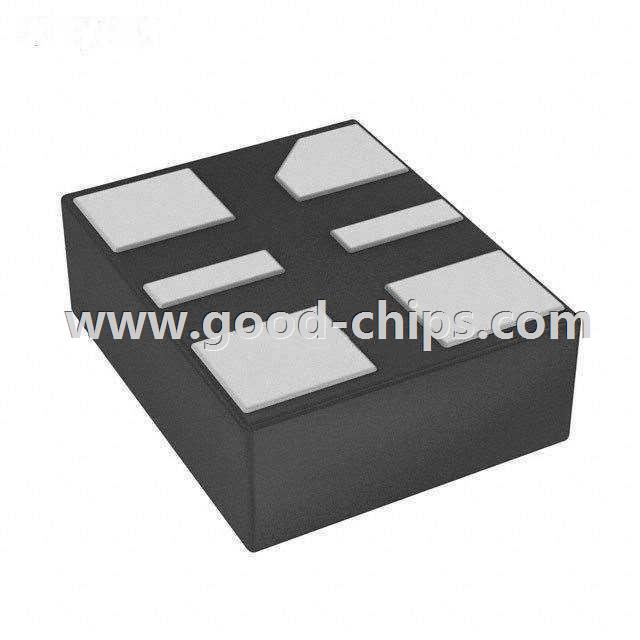

Package / Case | 6-SMD, No Lead (DFN, LCC) | |
Current - Supply (Disable) (Max) | 22mA | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DSC1123DI2-106.2500T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DSC1123DI2-106.2500T is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of DSC1123DI2-106.2500T is new and unused, you can buy DSC1123DI2-106.2500T Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DSC1123DI2-106.2500T.
