Manufacturer Part Number: | DSC1001DI2-011.0592B |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | Oscillators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 11.0592MHz CMOS MEMS (Silicon) Oscillator Surface Mount 1.8 V ~ 3.3 V 6.3mA Standby (Power Down) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DSC1001DI2-011.0592B Datasheet |
Internal Part Number | 898-DSC1001DI2-011.0592B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Mfg Application Notes | Clock System Design High-Speed PECL and LVPECL Termination | |
Category | Crystals and Oscillators | |
Family | Oscillators | |
Manufacturer | Microchip Technology | |
Series | DSC1001 | |
Packaging | Tape & Reel (TR) | |
Part Status | Quote Required | |
Type | MEMS (Silicon) | |
Frequency | 11.0592MHz | |
Function | Standby (Power Down) | |
Output | CMOS | |
Voltage - Supply | 1.8 V ~ 3.3 V | |
Frequency Stability | ±25ppm | |
Operating Temperature | -40°C ~ 85°C | |
Current - Supply (Max) | 6.3mA | |
Ratings | AEC-Q100 | |
Mounting Type | Surface Mount | |
Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
Height | 0.035" (0.90mm) | |

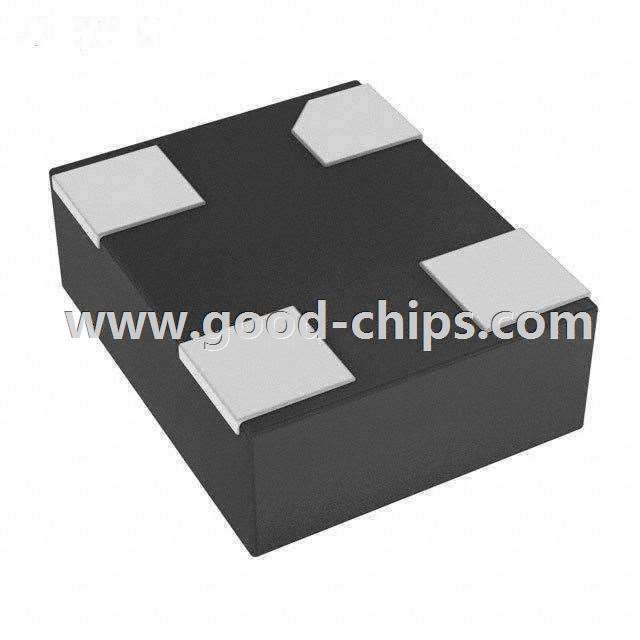

Package / Case | 4-SMD, No Lead (DFN, LCC) | |
Current - Supply (Disable) (Max) | 15µA | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DSC1001DI2-011.0592B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DSC1001DI2-011.0592B is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of DSC1001DI2-011.0592B is new and unused, you can buy DSC1001DI2-011.0592B Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DSC1001DI2-011.0592B.
