| Manufacturer Part Number: | DS99R103TSQX/NOPB |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Interface - Serializers, Deserializers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 960Mbps Serializer 24 Input 1 Output 48-WQFN (7x7) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DS99R103TSQX/NOPB Datasheet |
| Internal Part Number | 898-DS99R103TSQX/NOPB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Copper Wire Base Metal 15/Oct/2014 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Serializers, Deserializers | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | Serializer | |
| Data Rate | 960Mbps | |
| Input Type | LVCMOS | |
| Output Type | FPD-Link, LVDS | |
| Number of Inputs | 24 | |
| Number of Outputs | 1 | |
| Voltage - Supply | 3 V ~ 3.6 V | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

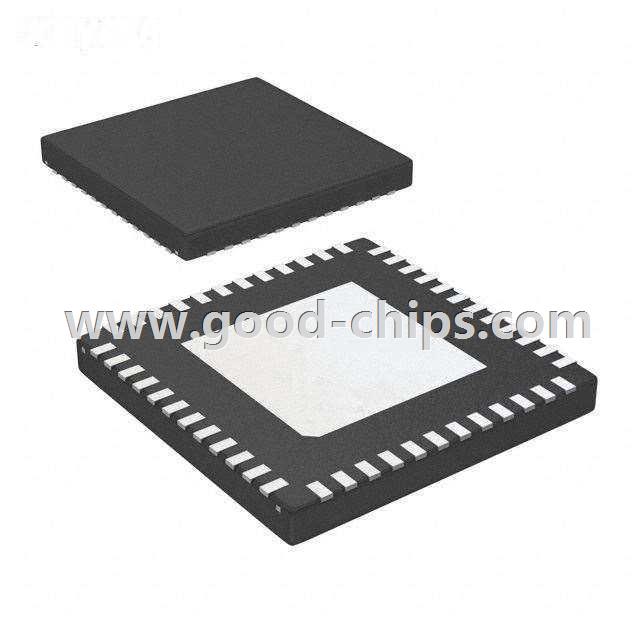

| Package / Case | 48-WFQFN Exposed Pad | |
| Supplier Device Package | 48-WQFN (7x7) | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DS99R103TSQX/NOPB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DS99R103TSQX/NOPB is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of DS99R103TSQX/NOPB is new and unused, you can buy DS99R103TSQX/NOPB Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DS99R103TSQX/NOPB.
