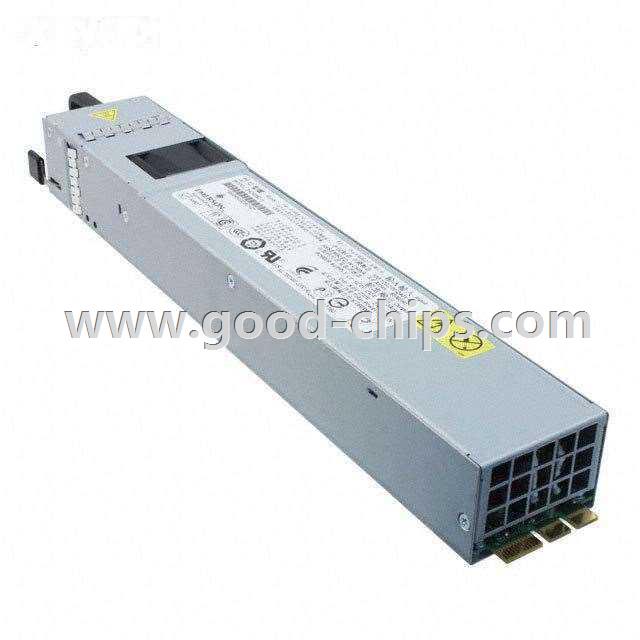

| Manufacturer Part Number: | DS760SL-3 |
|---|---|
| Manufacturer: | Artesyn Embedded Technologies |
| Product Category: | AC DC Converters |
| Available Quantity: | 9181 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 12V 760W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DS760SL-3 Datasheet |
| Internal Part Number | 898-DS760SL-3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | DSx Series Distributed Power System | |
| PCN Packaging | CSA Marking 20/Sep/2013 | |
| Online Catalog | DS760SL Series | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | Artesyn Embedded Technologies | |
| Series | DS760SL | |
| Part Status | Active | |
| Type | Front End | |
| Number of Outputs | 1 | |
| Voltage - Input | 90 ~ 264 VAC | |
| Voltage - Output 1 | 12V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 62.3A | |
| Power (Watts) | 760W | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | - | |
| Efficiency | 91% | |
| Operating Temperature | -10°C ~ 50°C | |
| Features | Adjustable Output, Hot Swappable, I²C™ Interface, Load Sharing, PFC, Standby Output, Universal Input | |
| Mounting Type | Rack Mount | |
| Size / Dimension | 12.68" L x 2.15" W x 1.57" H (322.0mm x 54.5mm x 40.0mm) | |
| Minimum Load Required | No | |
| Approvals | CB, CE | |
| Power (Watts) - Max | 748W | |
| Standard Package | 48 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DS760SL-3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DS760SL-3 is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of DS760SL-3 is new and unused, you can buy DS760SL-3 Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DS760SL-3.
