| Manufacturer Part Number: | DS50PCI401SQ/NOPB |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Interface - Signal Buffers, Repeaters, Splitters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buffer, ReDriver 8 Channel 5Gbps 54-WQFN (10x5.5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DS50PCI401SQ/NOPB Datasheet |
| Internal Part Number | 898-DS50PCI401SQ/NOPB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Signal Conditioning Applications | |
| Featured Product | Analog Solutions for Xilinx FPGAs and CPLDs – Texas Instruments | DigiKey | |
| PCN Design/Specification | Select Devices Add Cu Alt Wire Base Metal 17/Dec/2015 | |
| Manufacturer Product Page | DS50PCI401SQ/NOPB Specifications | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Signal Buffers, Repeaters, Splitters | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Buffer, ReDriver | |
| Applications | PCIe | |
| Input | CML | |
| Output | CML | |
| Data Rate (Max) | 5Gbps | |
| Number of Channels | 8 | |
| Delay Time | 200ps | |
| Signal Conditioning | Input Equalization, Output De-Emphasis | |
| Capacitance - Input | 10pF | |
| Voltage - Supply | 2.375 V ~ 2.625 V | |
| Current - Supply | - | |
| Operating Temperature | -10°C ~ 85°C | |

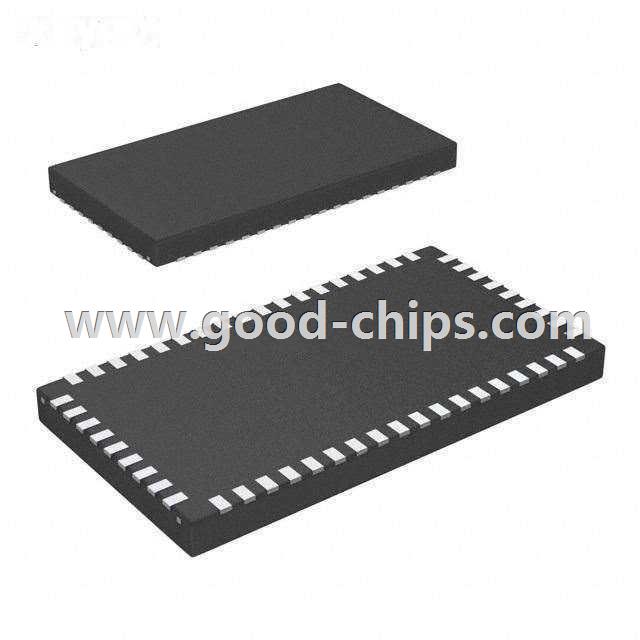

| Package / Case | 54-WFQFN Exposed Pad | |
| Supplier Device Package | 54-WQFN (10x5.5) | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DS50PCI401SQ/NOPB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DS50PCI401SQ/NOPB is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of DS50PCI401SQ/NOPB is new and unused, you can buy DS50PCI401SQ/NOPB Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DS50PCI401SQ/NOPB.
