| Manufacturer Part Number: | DS32KHZSN#T&R |
|---|---|
| Manufacturer: | Maxim Integrated |
| Product Category: | Oscillators |
| Available Quantity: | 11010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 32.768kHz CMOS TCXO Oscillator Surface Mount 5V 220µA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DS32KHZSN#T&R Datasheet |
| Internal Part Number | 898-DS32KHZSN#T&R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Using the DS32kHz with Maxim Real-Time Clocks FAQ About the Integrated-Crystal Package Option Selecting a Backup Source for Real-Time Clocks Implementing Flawless Designs with Accurate I²C Real-Time Clocks | |
| Product Training Modules | Lead (SnPb) Finish for COTS Long-Term Supply Program | |
| Online Catalog | DS Series | |
| Category | Crystals and Oscillators | |
| Family | Oscillators | |
| Manufacturer | Maxim Integrated | |
| Series | DS | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | TCXO | |
| Frequency | 32.768kHz | |
| Function | - | |
| Output | CMOS | |
| Voltage - Supply | 5V | |
| Frequency Stability | ±7.5ppm | |
| Operating Temperature | -40°C ~ 85°C | |
| Current - Supply (Max) | 220µA | |
| Ratings | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.412" L x 0.300" W (10.46mm x 7.62mm) | |
| Height | 0.105" (2.67mm) | |

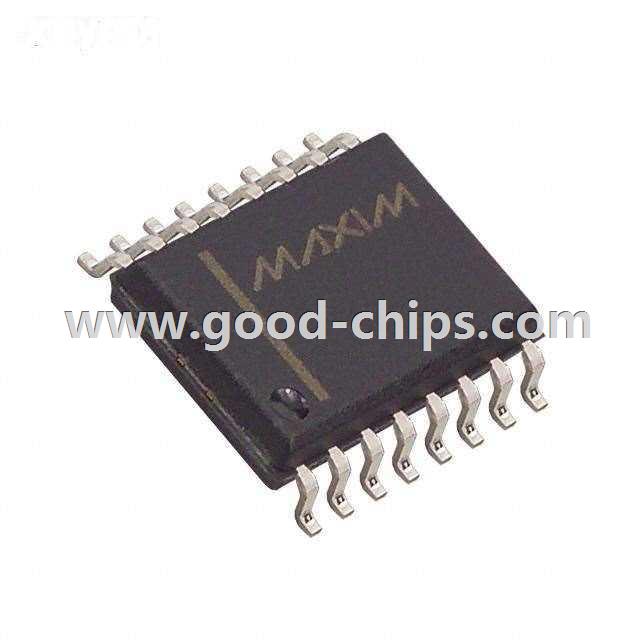

| Package / Case | 16-SOIC (0.295", 7.50mm Width) | |
| Current - Supply (Disable) (Max) | - | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DS32KHZSN#T&R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DS32KHZSN#T&R is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of DS32KHZSN#T&R is new and unused, you can buy DS32KHZSN#T&R Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DS32KHZSN#T&R.
